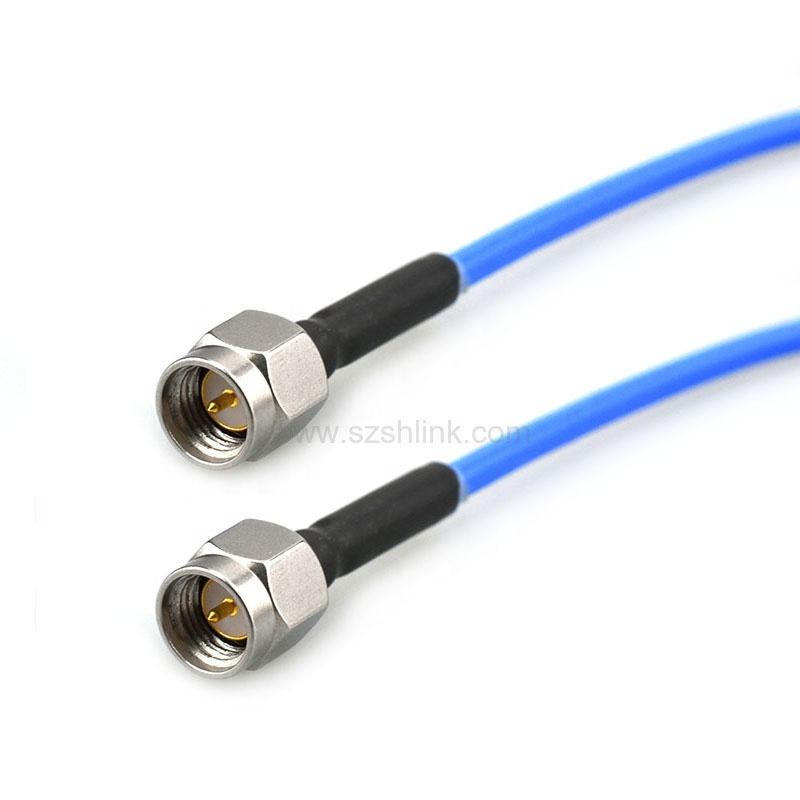

Wireless Routers Bluetooth MIMO Plug SMA Male Connector RF Coaxial Cable Assembly with RG58/RG174/RG316 Coax，With mechanical, electrical, environmental and application-specific. we have to make sure cables can survive severe conditions and perform reliably long time.
SH-link cables and cable assemblies in durable, compact and flexible designs help to ensure the safety and success of every flight, mission, exploration, extraction, and production.
Cable with Low loss, high softness, phase/insertion loss stability, hi
gh temperature , low standing wave, they can be customized according tothe requirements of the component length characteristics, the frequency can be as high as 40G.
Specification:
ELECTRICAL DATA | |||
Impedance | 50Ω | ||
Frequency range | DC-18Ghz | ||
VSWR | 1.3 max | ||
Voltage | 60V AC(rms) | ||
Insulation Resisitance | 500 MΩ min. | ||
Insertion Loss | 0.3dB max. at 1.0 GHZ/0.5DB max. at 2.0 GHZ | ||
MATERIAL DATA | |||
Bodies | Brass-- | ||
Pin contacts | Brass-- | ||
Socket contacts | Copper-beryllium alloy--Au plating | ||
Insulator | PTFE | ||
Cable type | 0.81mm,1.13mm,1.37mm,RG178,RG174,RG316,RG58,LMR195,LMR240 | ||
Application | smartphone,tablet PC,wifi antenna,GPS antenna, RF device etc | ||
Temperature range | -40°C to +80°C | ||
