Fakra Female Connector (Long) | SH-Link

Fakra Long Male SMB Connector | SH-Link

Fakra Female (90-degree) Connector | SH-Link

fakra smb connector FAKRA Male Connectors (Straight) | SH-Link

Fakra Dual-Body Angled Female Connector | SH-Link

Fakra Dual-Body Angled Female Connector | SH-Link company

Fakra Dual-Body Angled Female Connector | SH-Link

Fakra dual-body angled female connectors are primarily used for connecting RF signals in automotive RF systems, such as GPS navigation modules, 5G connected car devices, and in-car entertainment systems, ensuring stable transmission of multi-band wireless signals within the vehicle. Compatible with RG176, RG316, RG58, and LMR200 cables.

Operating frequency: DC-6 GHz, impedance: 50 ohms, operating temperature: -40°C to +85°C

Material: Housing: PA66 + 30% GF; Clamp: Beryllium Copper; Copper Tube: Nickel-Plated Brass; Insulator: PTFE; Center Pin: Gold-Plated Beryllium Copper; Housing: Nickel-Plated Brass

This adapter is compatible with 14 Fakra connector sizes: A, B, C, D, E, F, G, H, I, K, Z, L, M, and N. Each size corresponds to a different color, and sizes are not mutually compatible.

We offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability.

SEND INQUIRY NOW

Product Name

Twin FAKRA Female 90° Connectors(Short)

Place of Origin

Guangdong, China

Brand Name

SH-Link/SH

Model Number SHM.900.0003-31

Application

Automotive

Certificate

ISO9001, IATF16949, ISO14001

Cable

RG174, RG316,1.5D

SEND INQUIRY NOW

Strict quality tests are conducted to ensure longevity and cost effectiveness of this offered product.

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0-4GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	＞500cycles
Temperature	-40 ~ +85°C

Specification Drawing

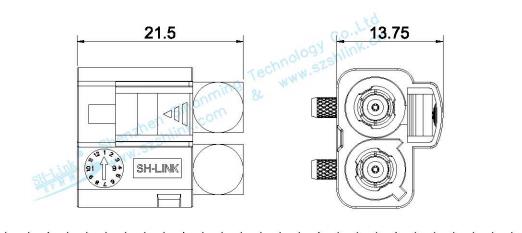

Outline Drawing

Model&Colors

Model&Colors	Model	Colors
	A	Black
	B	White
	C	Blue
	D	Bordeaux-Violet
	E	Green
	F	Brown
	G	Grey
	H	Violet
	I	Beige
	K	Curry
	Z	Waterblue
	L	Carmine Red
	M	Pastel Orange
	N	Pastel Green

Internal Structure

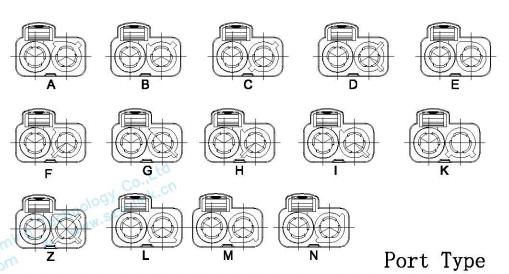

Port Type
