FAKRA PCB Angled Male Connectors (90 Degrees) K Type | SH-Link

FAKRA PCB Angled Male Connectors (90 Degrees) K Type | SH-Link

FAKRA PCB Angled Male Connectors (90 Degrees) K Type are mainly used in vehicle remote control, keyless entry systems, and other fields. They can be used to connect automotive antennas, sensors, controllers, and other devices to achieve radio frequency signal transmission.

Operating Frequency: DC-4GHz; Impedance: 50 ohms; Operating Temperature: -40℃～＋85℃

Materials: Body Backplate: Gold-plated brass; Body Front Shell: Nickel-plated brass; Center Pin: Gold-plated phosphor bronze; Insulator: PTFE; Shell: PA66+30%GF

This FAKRA connector comes in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

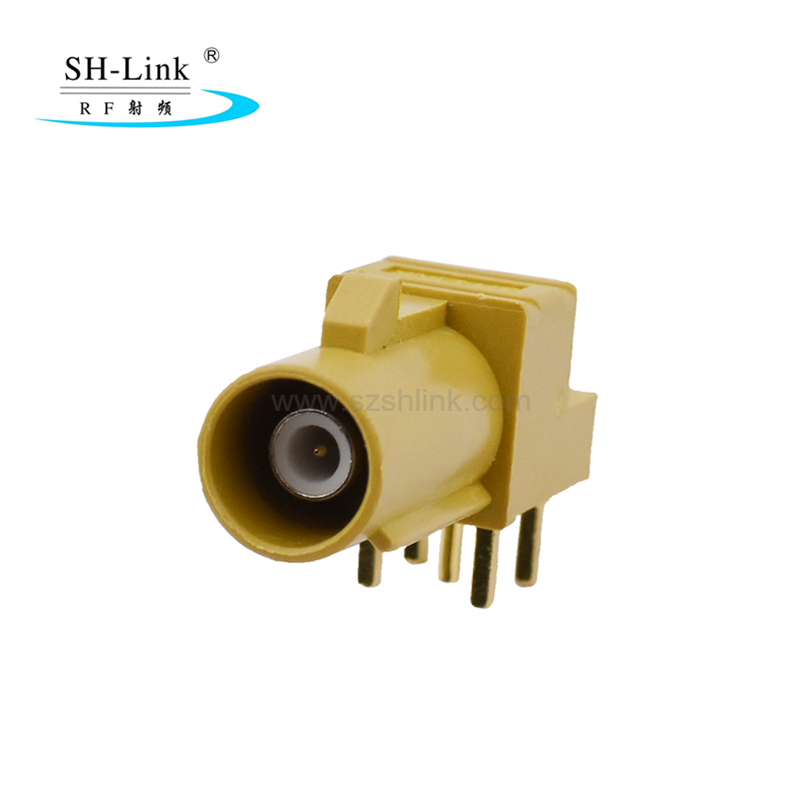

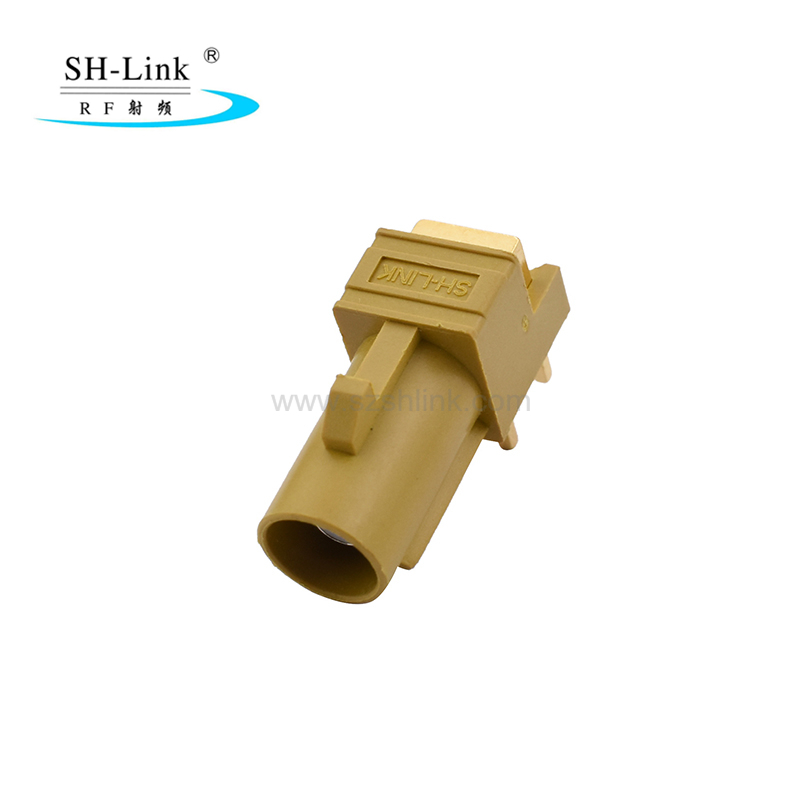

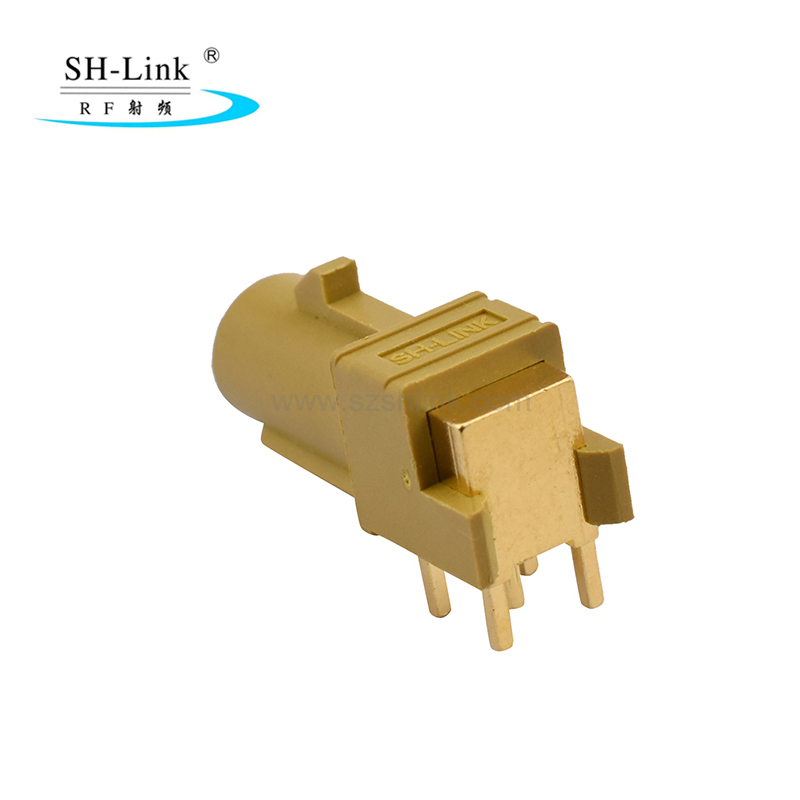

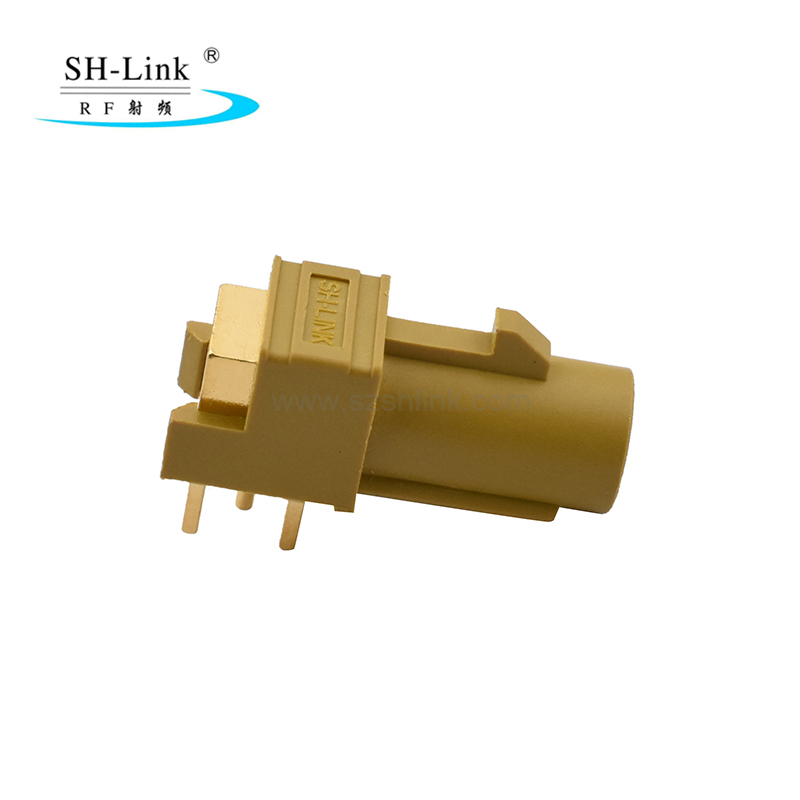

The product shown in the picture is the K type. We offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Please feel free to contact us.

SEND INQUIRY NOW

Product Name

FAKRA Male Connector For PCB

Place of Origin

Guangdong,China

Brand Name

SH-Link

Model Number

SHM.900.0002-1.K

Application

Automotive

Certificate

ISO9001,IATF16949,ISO14001

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~4GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
