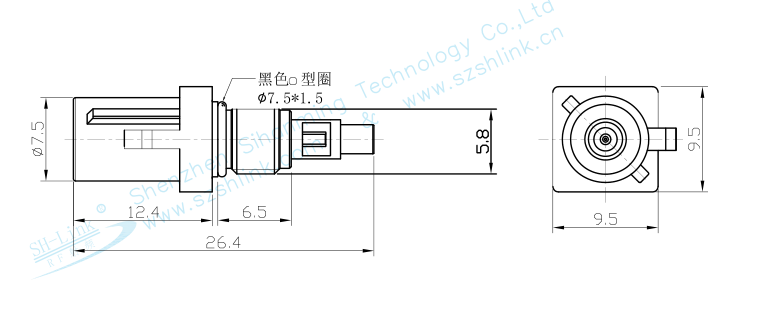

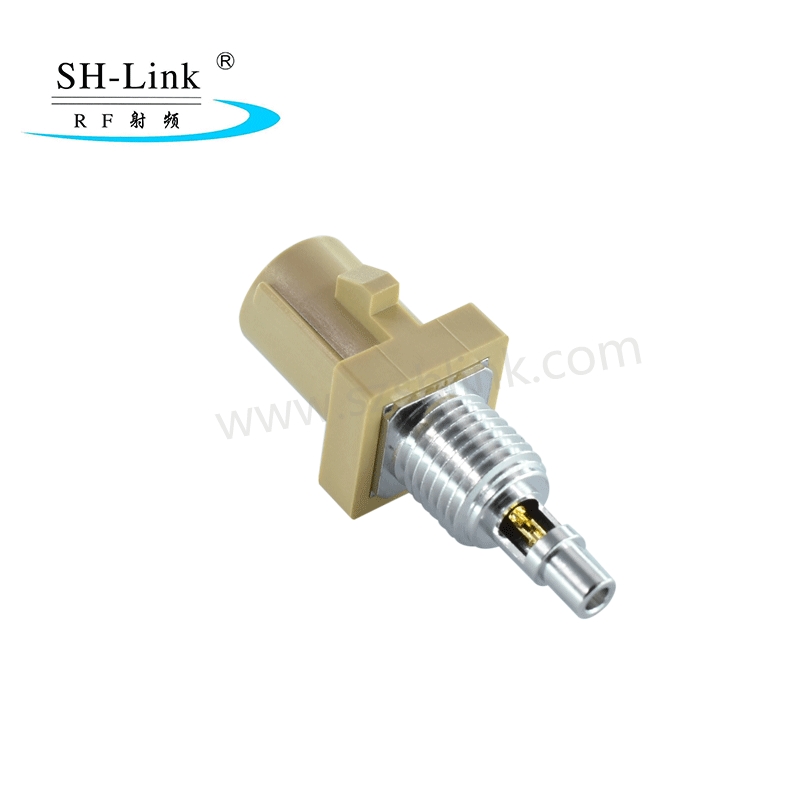

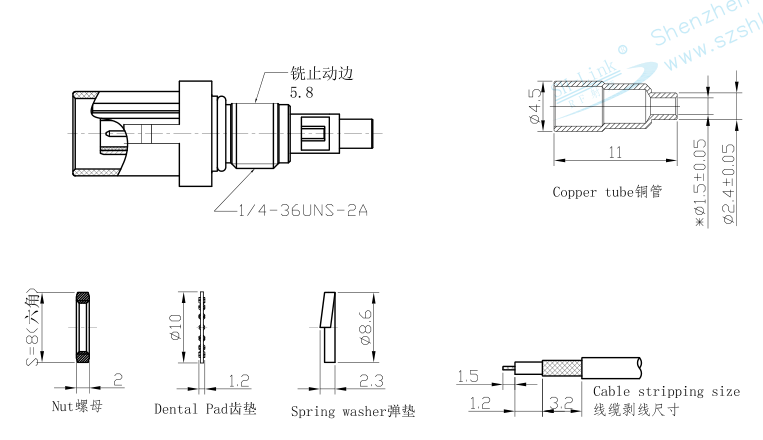

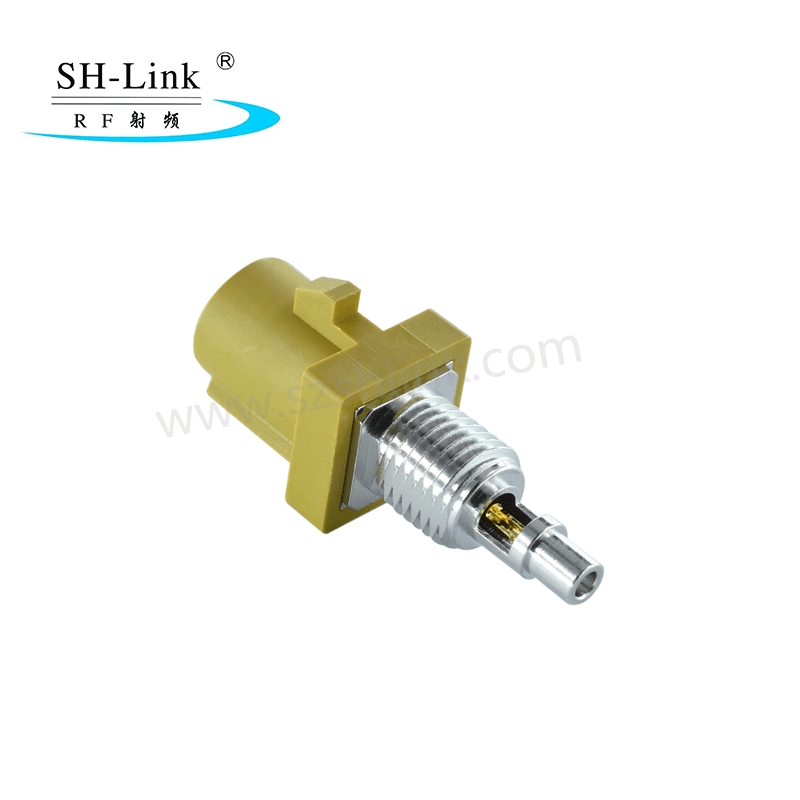

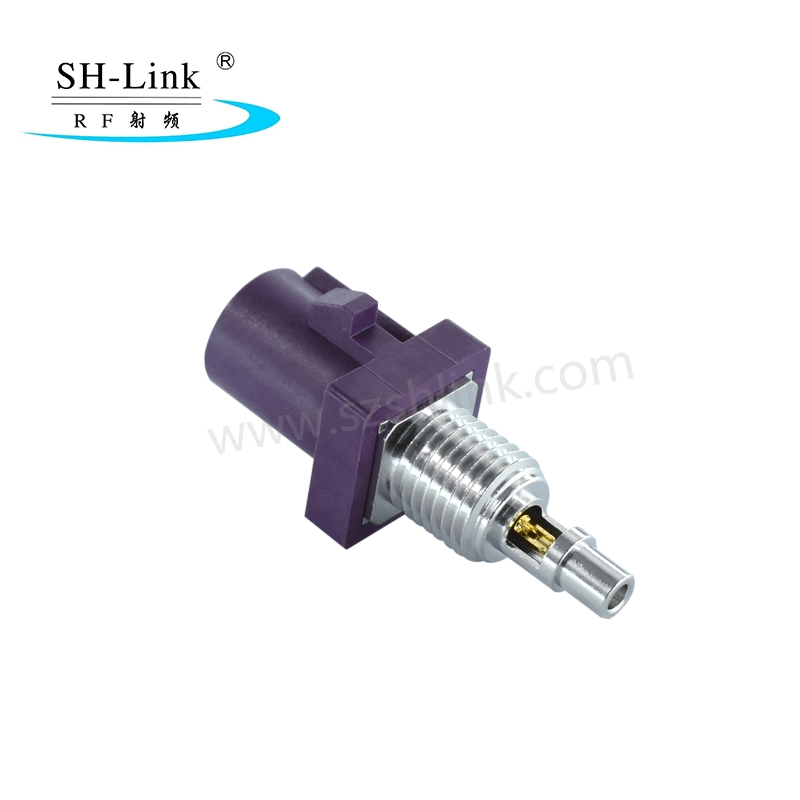

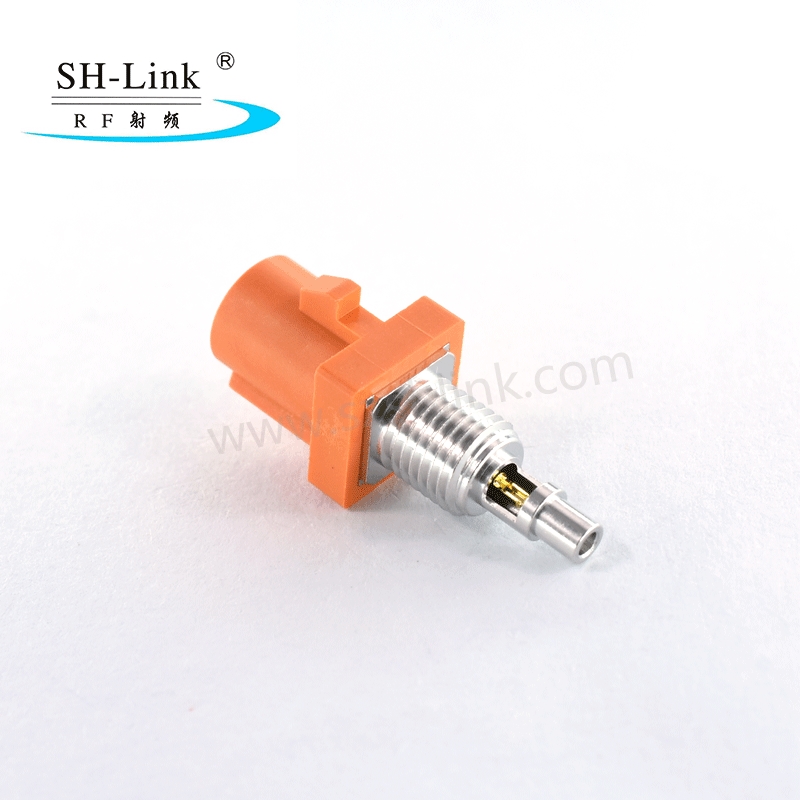

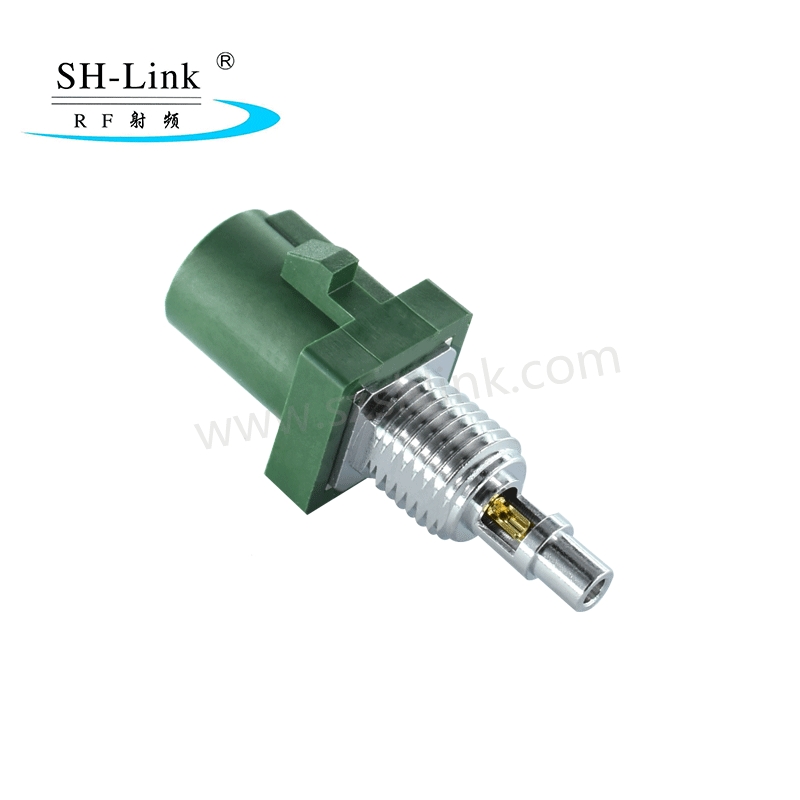

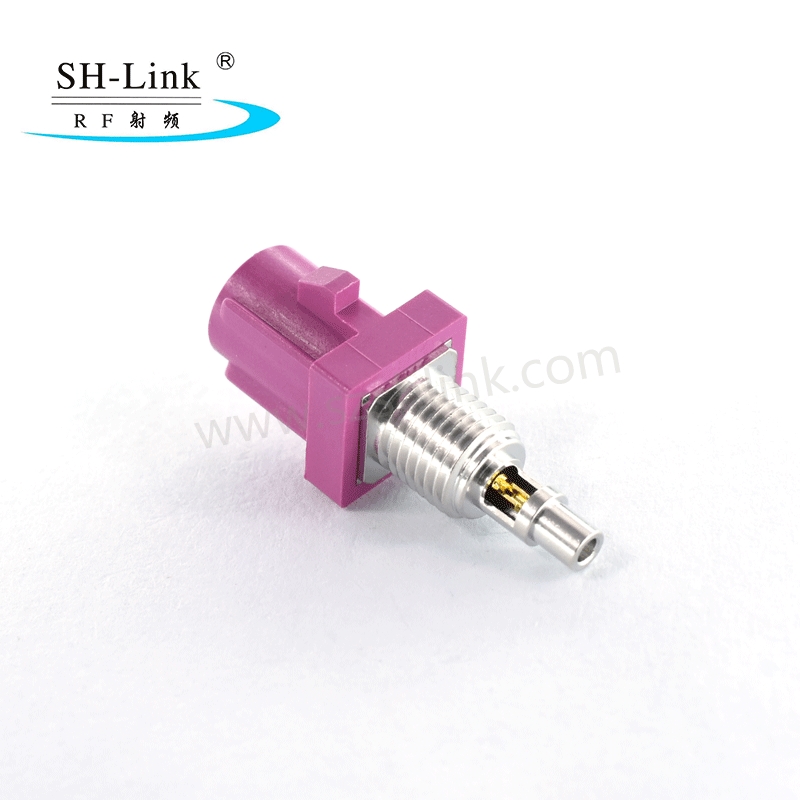

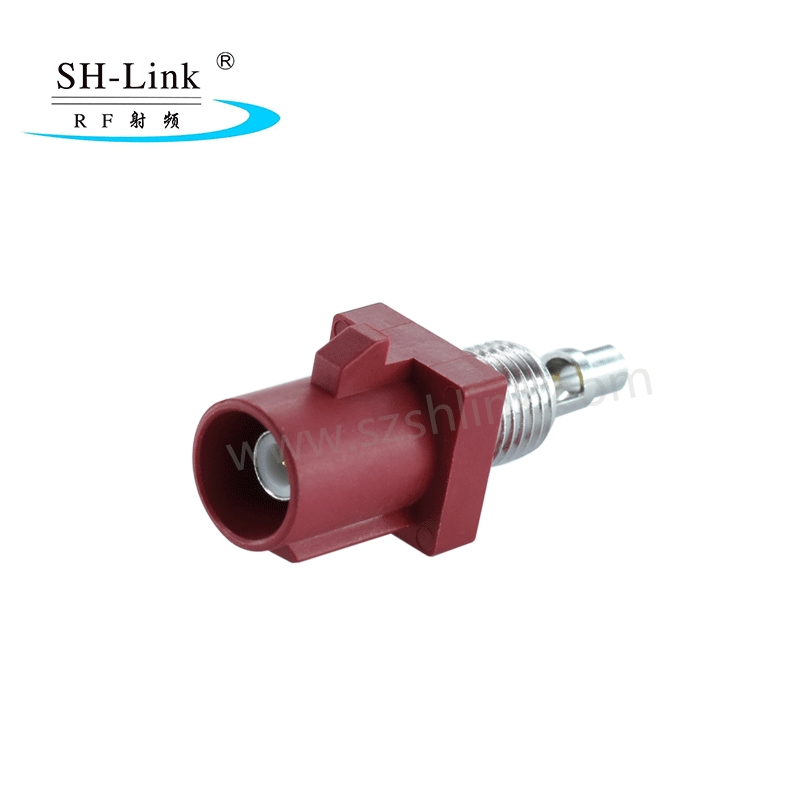

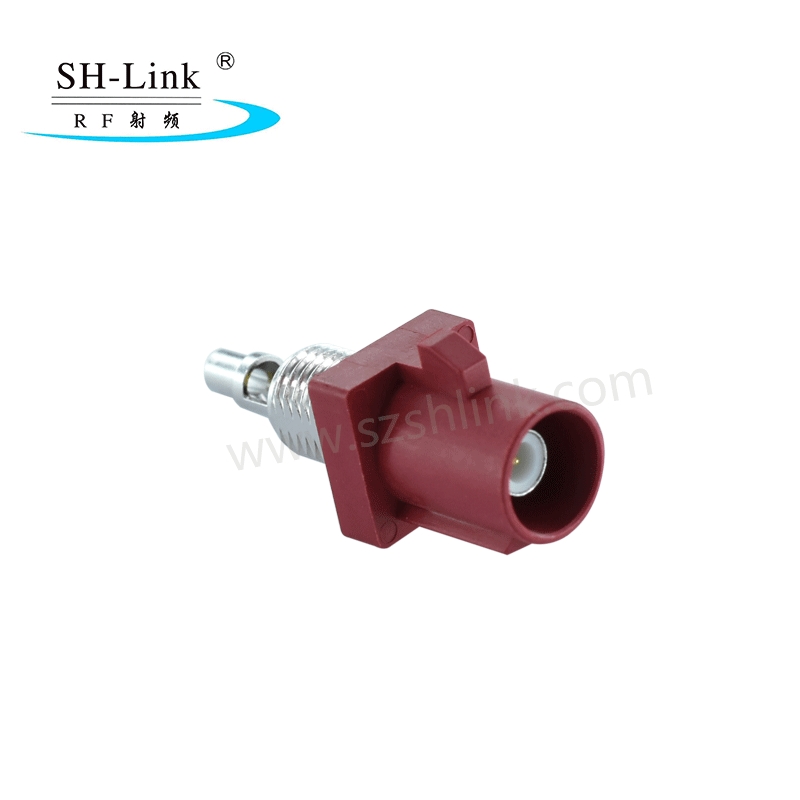

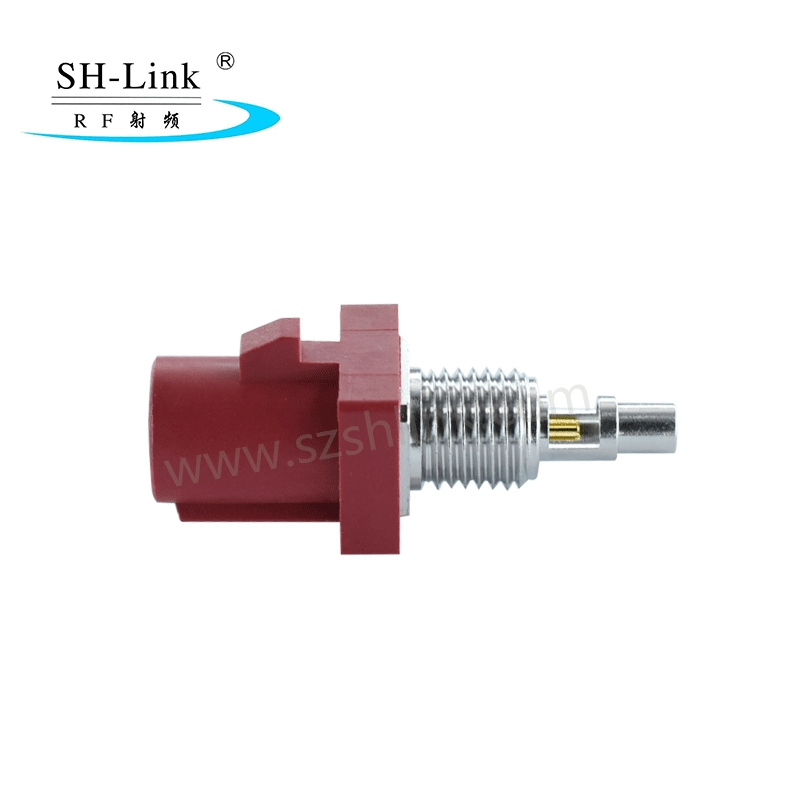

VPM Fakra Male Code L Connector with Screw Thread for 1.13 Coax compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.SH-Link summarizes the defects of past products, and continuously improves them. The specifications of VPM Fakra Male Code L Connector with Screw Thread for 1.13 Coax can be customized according to your needs.
FAKRA connectors most are RoHS and REACH compliant. FAKRA connectors in this category will terminate to coax or PCB (printed circuit board). Our FAKRA connectors are built to precise microwave and RF industry specifications.FAKRA connectors are constructed in jack or plug gender with 50 Ohm impedance. FAKRA connectors are available in straight or right angle versions, as well as, mountless options. These FAKRA connector designs include crimp/solder or solder attachment methods.
Major Characteristics: |
Double-Locked,Fool-Proofing assembly with the color and the structure. |
The connector is be protected by the cap. |
Easy to assembly. |
Many difference between the connector and the cap. |
The Product Technical Characteristics: | |
Body | Brass,Ni-Plated |
Socket | Beryllium-copper,Gold-Plated |
Pin Contact | Brass |
Insulator | PTFE |
Crimp Ferrule | Brass,Ni-Plated |
O-ring | Beryllium-Copper |
Shell | PA66+30%GF |
Technical Characteristics: | |
Impedance | 50ohm |
Frequency Range | 0~6GHz |
Withstanding Voltage | 1000V(RMS) |
Contact Resistance | |
Center Contact | ≤ 20m |
Outer contact | ≤10m |
Insulation | ≥1,000MΩ |
VSWR | DC - 2GHz<1.2 |
Mechanical characteristics: | |
Assembly | Locked |
Durability | ≥ 500 cycles |
Temperature | -40 ~ +85°C |
