FAKRA Screw Thread Male Connector

HOME > PRODUCTS > Connectors > Fakra Automotive Connectors > FAKRA Screw Thread Male Connector

Recommended

Replay

Recommended

Fakra Female Connector (Long) | SH-Link

Fakra Long Male SMB Connector | SH-Link

Fakra Female (90-degree) Connector | SH-Link

fakra smb connector FAKRA Male Connectors (Straight) | SH-Link

fakra smb connector FAKRA Screaw Thread Male Connector (Short Type) H | SH-Link

fakra smb connector FAKRA Screaw Thread Male Connector (Short Type) H | SH-Link

The FAKRA Screaw Thread Male Connector (Short Type) H is primarily used in the automotive industry, such as car radio systems, GPS systems, telematics, car phones, Bluetooth connectivity, wireless internet, rearview cameras, and advanced driver assistance systems. It can also be used in some electronic devices requiring high-frequency signal transmission. Compatible with 1.13/1.32/1.37 lines.

Operating Frequency: DC-6GHz; Impedance: 50 ohms; Operating Temperature: -40℃～＋85℃

Connector Materials: Shell: Brass ternary alloy; Center pin: Gold-plated brass; Insulator: PTFE; Outer shell: PA66+30%GF; Copper tube: Nickel-plated brass; Sealing ring: Black silicone

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

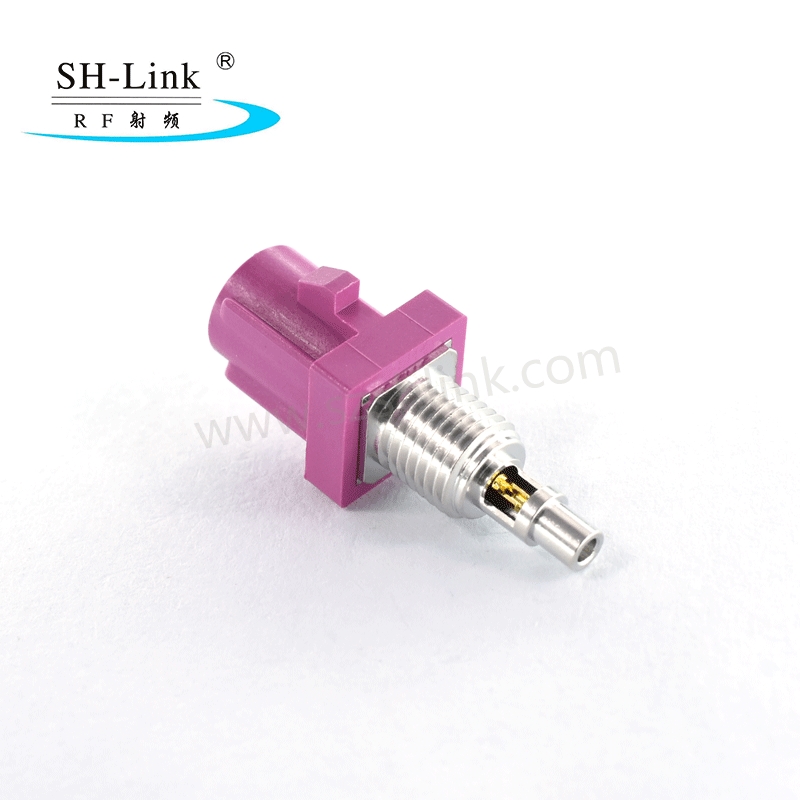

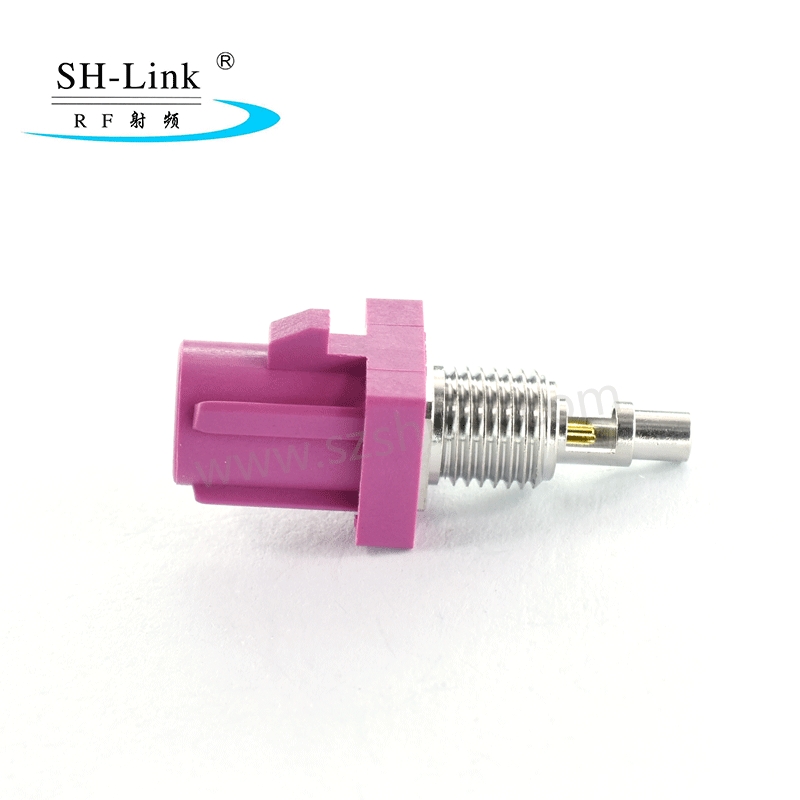

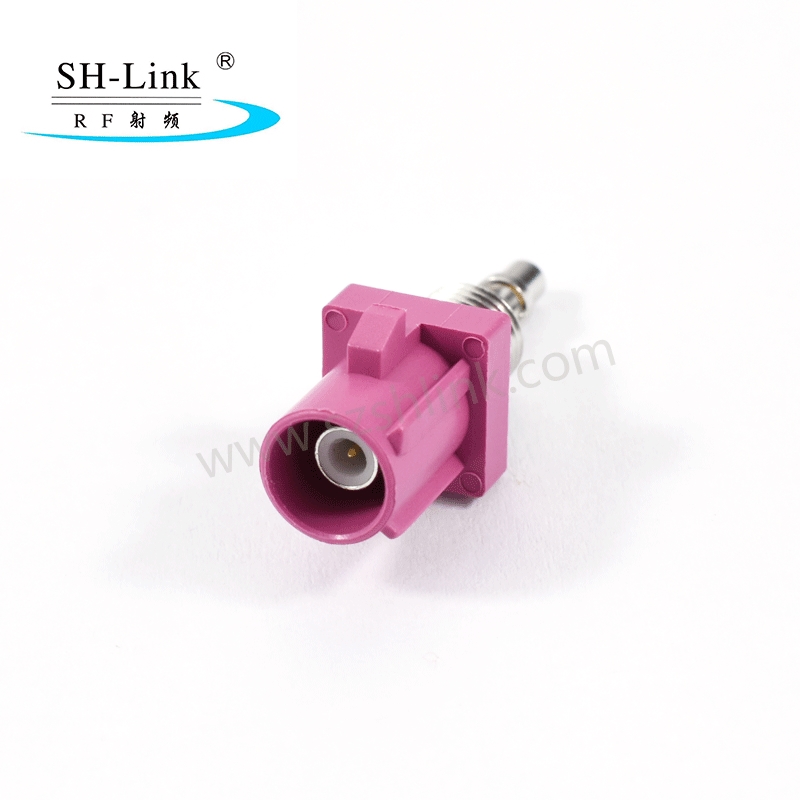

The product shown in the picture is an H-type, which we offer high-quality, high-volume production. We also provide custom lengths and sizes at reasonable prices, ensuring safety and reliability. Please inquire for more information.

SEND INQUIRY NOW

Product Name

FAKRA Screw Thread Male Connector

Place of Origin

Guangdong, China

Brand Name

SH-Link

Model Number

SHM.900.0006-24.H

Application

Automotive

Certificate

ISO9001, IATF16949, ISO14001

Cable

1.13

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~6GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
