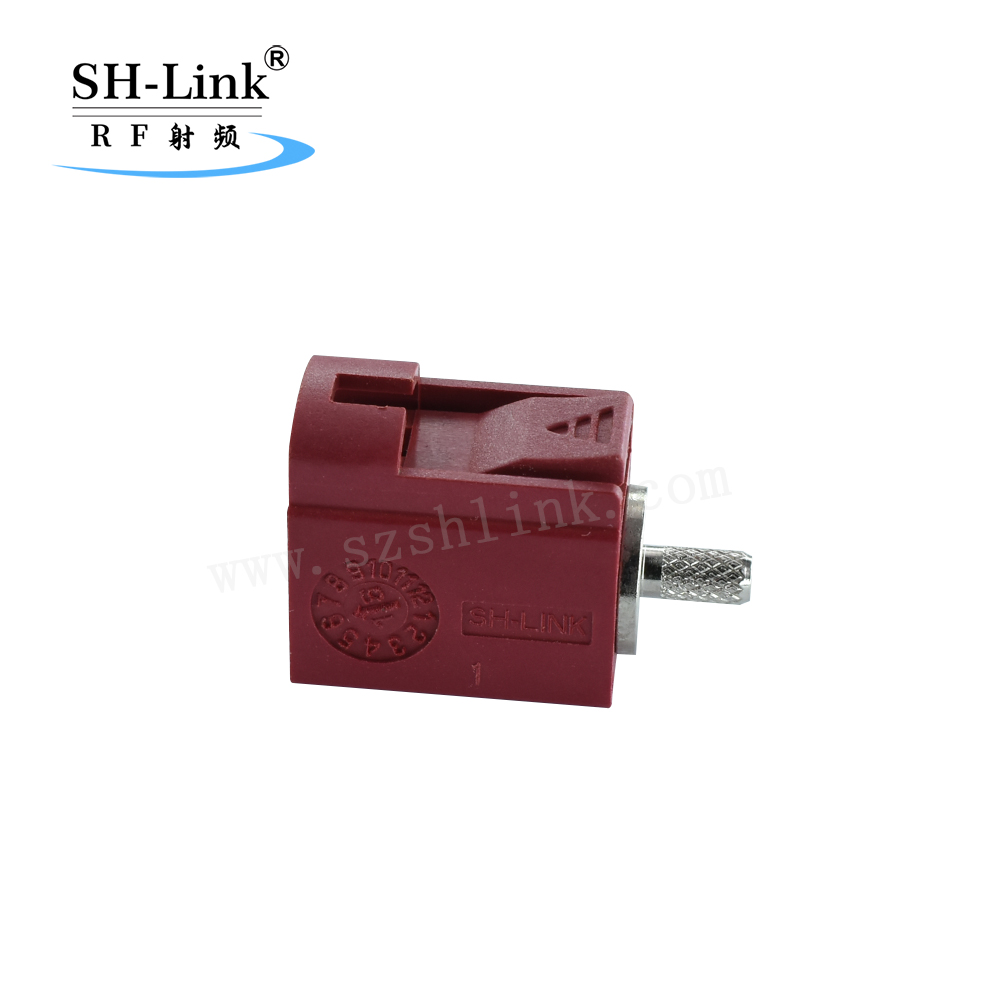

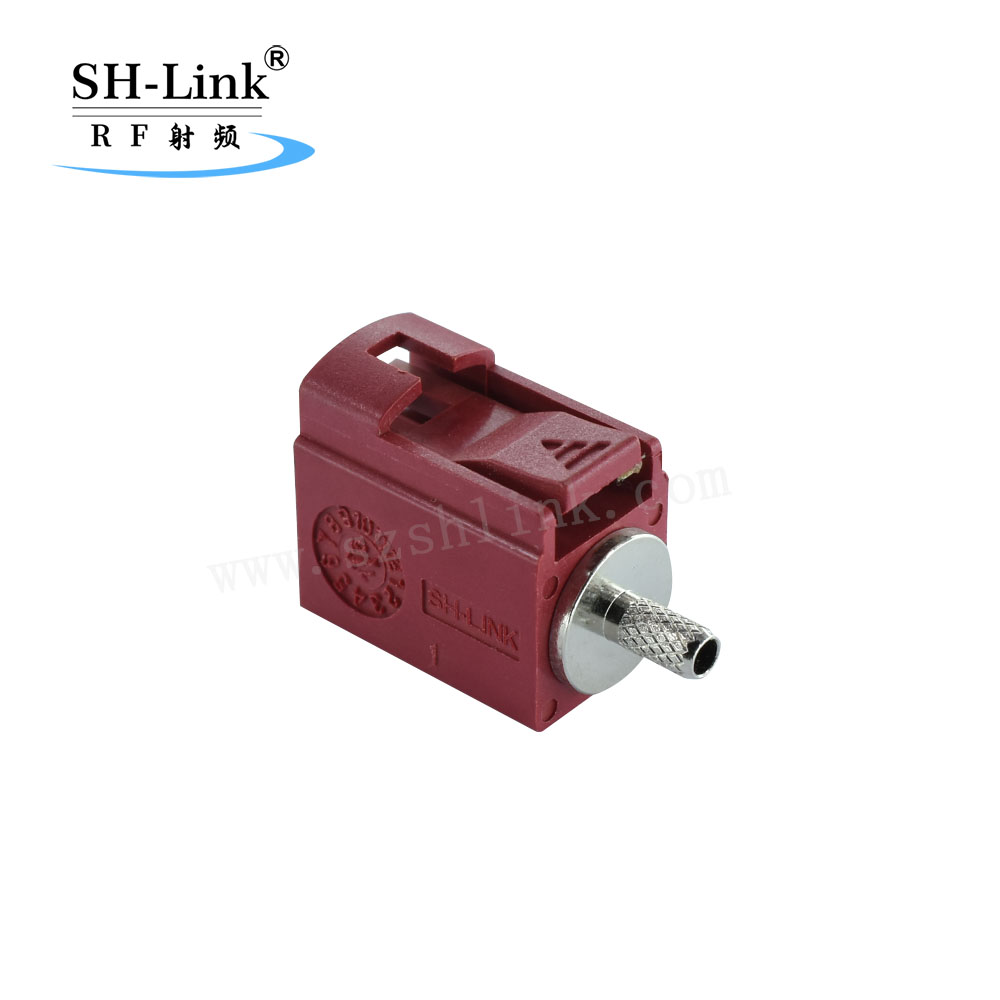

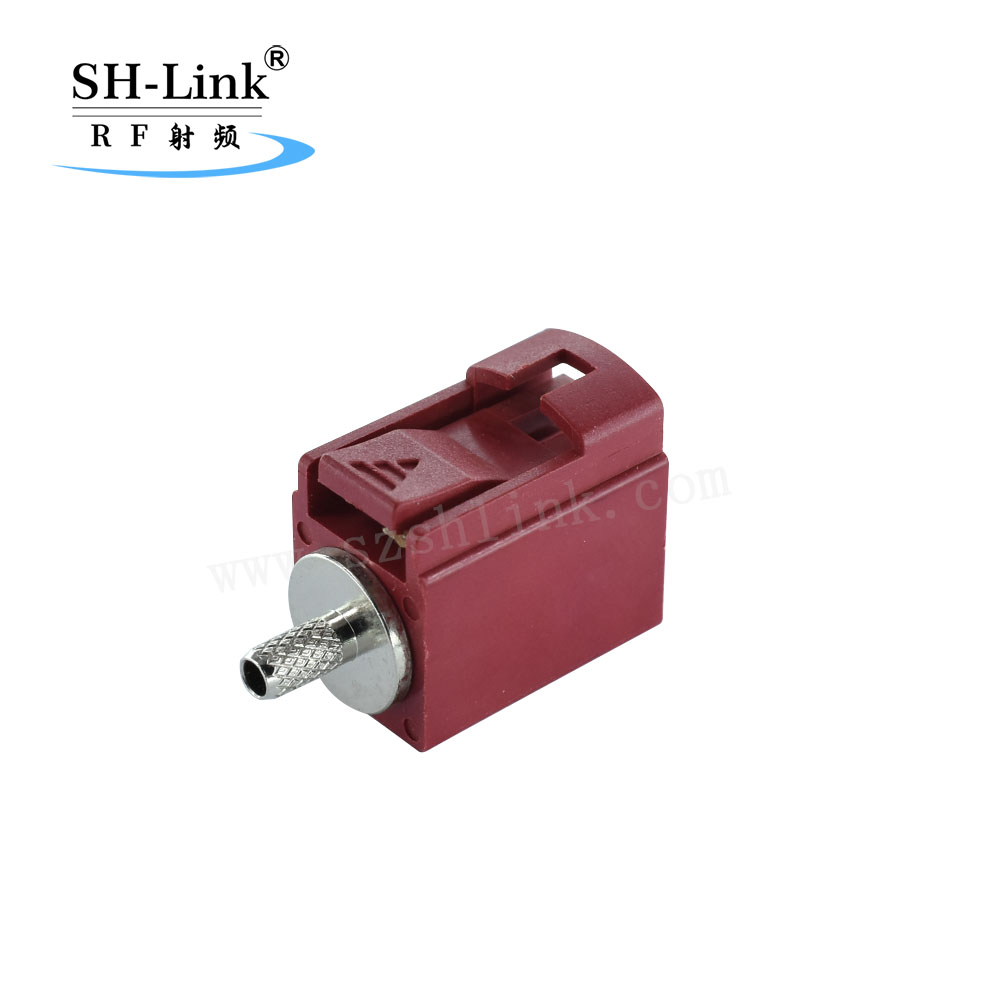

fakra smb connector FAKRA Female Connector (Short) L-Type | SH-Link

The FAKRA Female Connector (Short) L-Type is primarily used in automotive Advanced Driver Assistance Systems (ADAS), vehicle networking systems, infotainment, GPS navigation, and cameras. It can also be used in some electronic devices requiring radio frequency signal transmission. Compatible with RG58/LMR200/LMR240/RG174/RG316 cables.

Operating Frequency: DC-4GHz; Impedance: 50 ohms; Operating Temperature: -40℃～＋85℃

Connector Materials: Shell: Nickel-plated brass; Center Pin: Gold-plated beryllium copper; Insulator: PTFE; Outer Shell: PA66+30%GF; Copper Tube: Nickel-plated brass; Clamping Ring: Beryllium copper. This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

The product shown is L-shaped. We offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Please inquire for more information.

SEND INQUIRY NOW

Product Name

FAKRA Female Connector(Short）

Place of Origin

Guangdong, China

Brand Name

SH-Link

Model Number

SHM.900.0003-36.L

Application

Automotive

Certificate

ISO9001, IATF16949, ISO14001

Cable

RG174 Low Loss Cable

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~4GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
