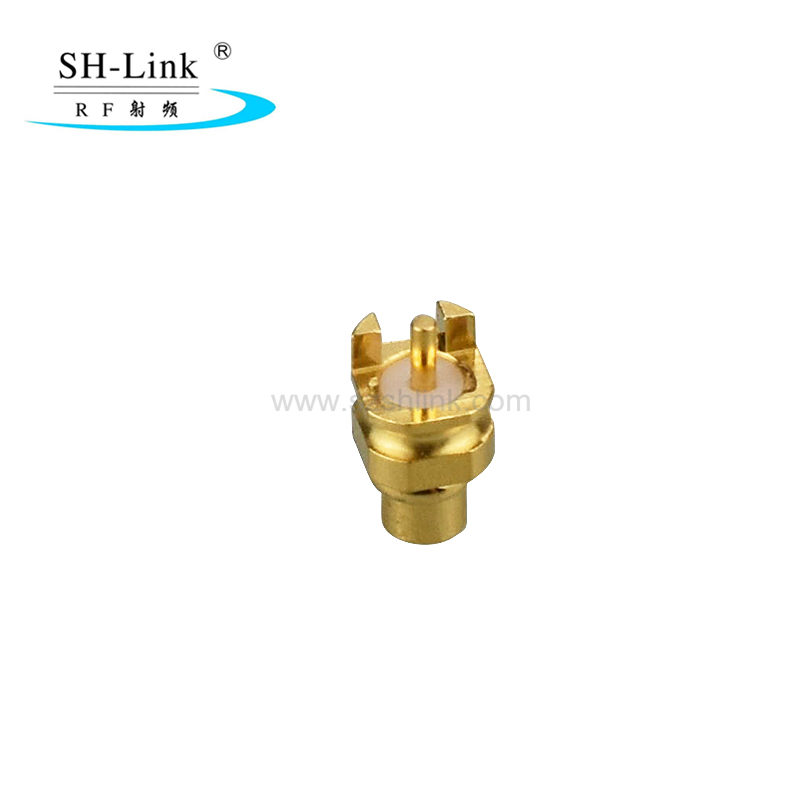

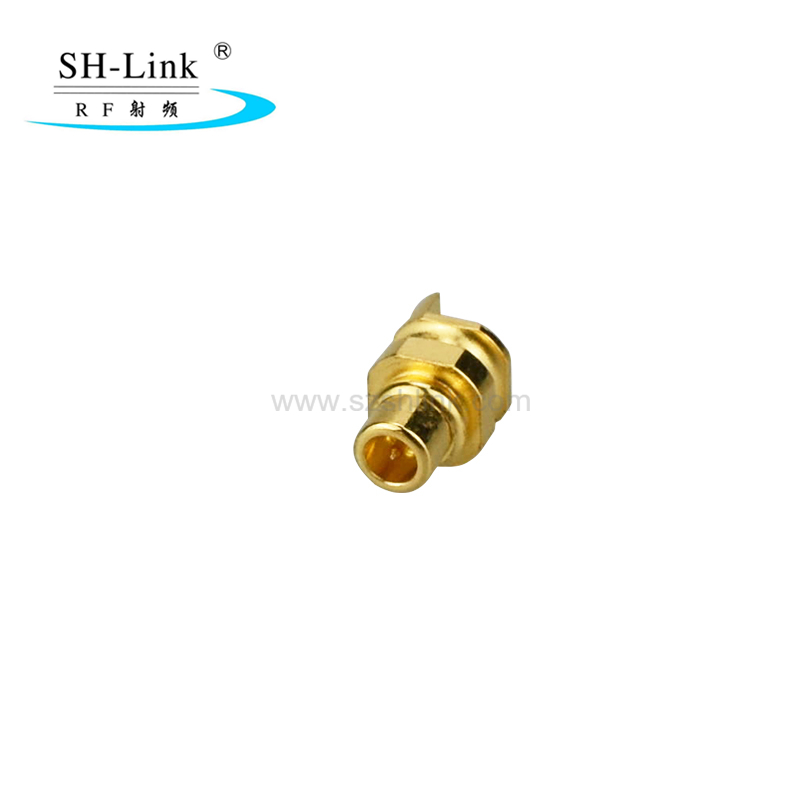

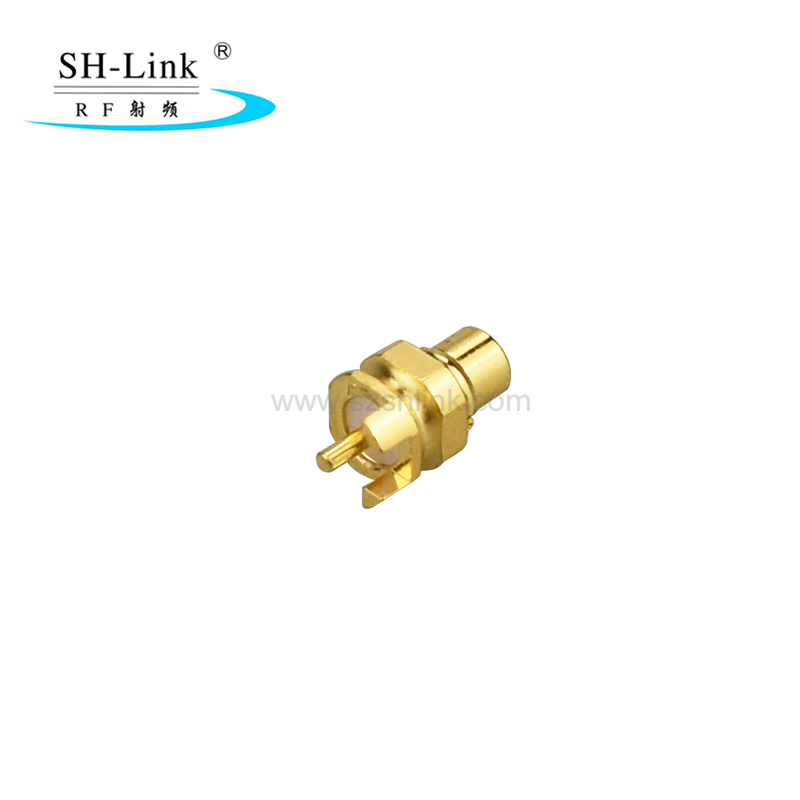

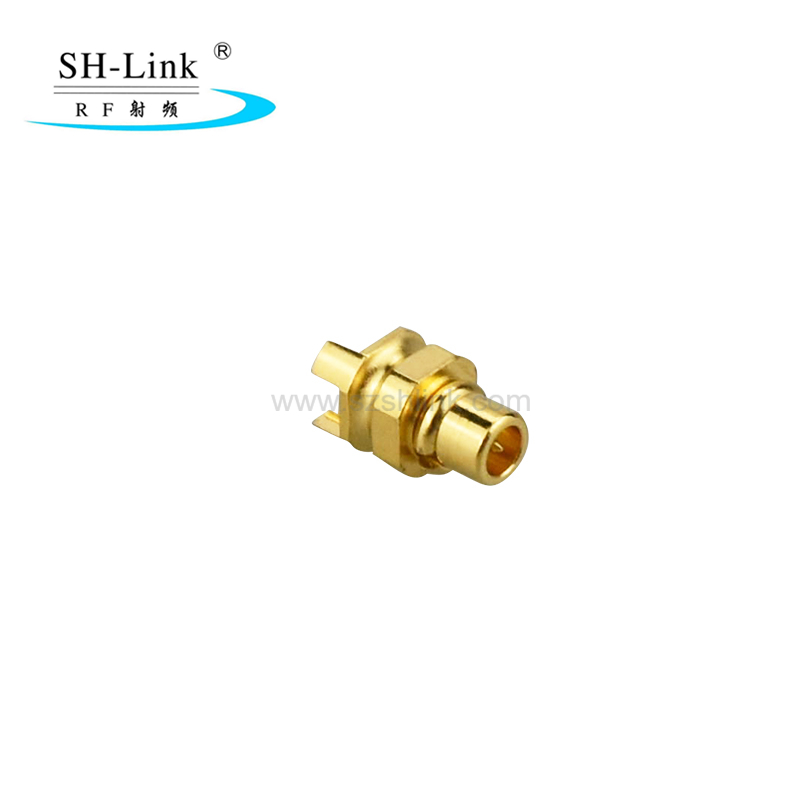

MMCX board-ended male connectors are widely used in small mobile communication and network devices with strict size and weight requirements for connecting RF coaxial cables. Utilizing surface mount technology (SMT),they are suitable for mass production assembly lines.

Operating frequency: DC-6GHz; lmpedance: 50 ohms; Operating temperature:-55°C~+125°C.

Connector materials: Housing: Gold-plated brass; Center pin: Gold plated brass; Insulator: PTFE, Copper tube: Beryllium copper gold plated.

We offer high-quality, high-volume production. We also provide custom lengths and sizes at reasonable prices, ensuring safety and reliability.Inquiries are welcome.

SEND INQUIRY NOW

Product Name

MMCX Coaxial Connector

Place of Origin

Guangdong, China

Brand Name

SH-Link

Model Number

SHM.660.140

Application

Certificate

ISO9001,IATF16949,ISO14001

Mating Relations

Can be matched types of same MMCX series and accessories

SEND INQUIRY NOW

Product Details
Company Profile

Product Details

MMCX Coaxial Connector

Product Specifications

Product NO.	MMCX CONNECTOR
Product Design Level	Universal connector (Level 2)

Universal connector (Level 2)：
Working Voltage	250V(50Ω) at sea level
Temperature Range	-55℃～＋155℃
Frequency Range	DC-6GHz
Impedance	50Ω

Technical Parameters：
Electrical Properties：
Contact Resistance：
Center Contact	≤6mΩ
Outer Contact	≤1mΩ
Insulation Resistance	≥1000MΩ
Medium Pressure	750V(50Ω) at sea level

Environmental Performance：
Temperature Range
Environment temperature	-55 ℃～+155℃
Salt Fog	＞48Ｈ
Resistance to Moisture	Relative humidity＋40 ℃ When it is up to 95％

Product Drawings

MMCX Coaxial Connector

TYPE MMCX RF Coaxial Connector is a Kind of miniature Connectors with snap-on Coupling .Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small volume、light weight、concise structure、easy to use.They are widely used in the Global Position System、Digital Personal Computer Network、all kinds of radio instruments、small-sized electronic equipments and WLAN system.
