Fakra Female Connector (short) Type E | SH-Link

The Fakra Female Connector (short) Type E is primarily used in high-precision vehicle navigation systems, intelligent driving positioning links, and satellite-assisted positioning systems. It is compatible with RG174, RG316, RG58, and LMR200 cables.

Operating frequency: DC-4GHz; Impedance: 50 ohms; Operating temperature: -40°C to +85°C

Fakra connector materials: Shell: Nickel-plated brass; Center pin: Gold-plated beryllium copper

Insulator: PTFE; Outer shell: PA66+30%GF; Copper tube: Nickel-plated brass; Clamping ring: Beryllium copper

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

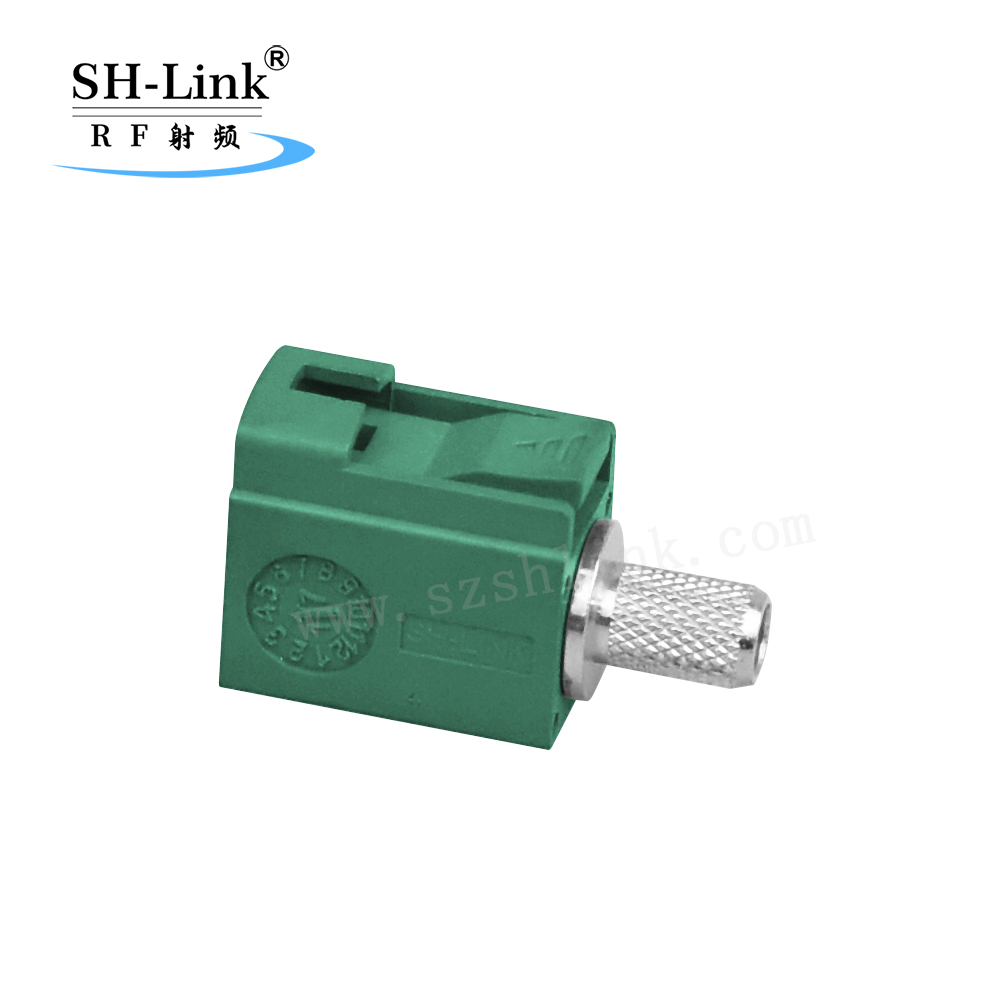

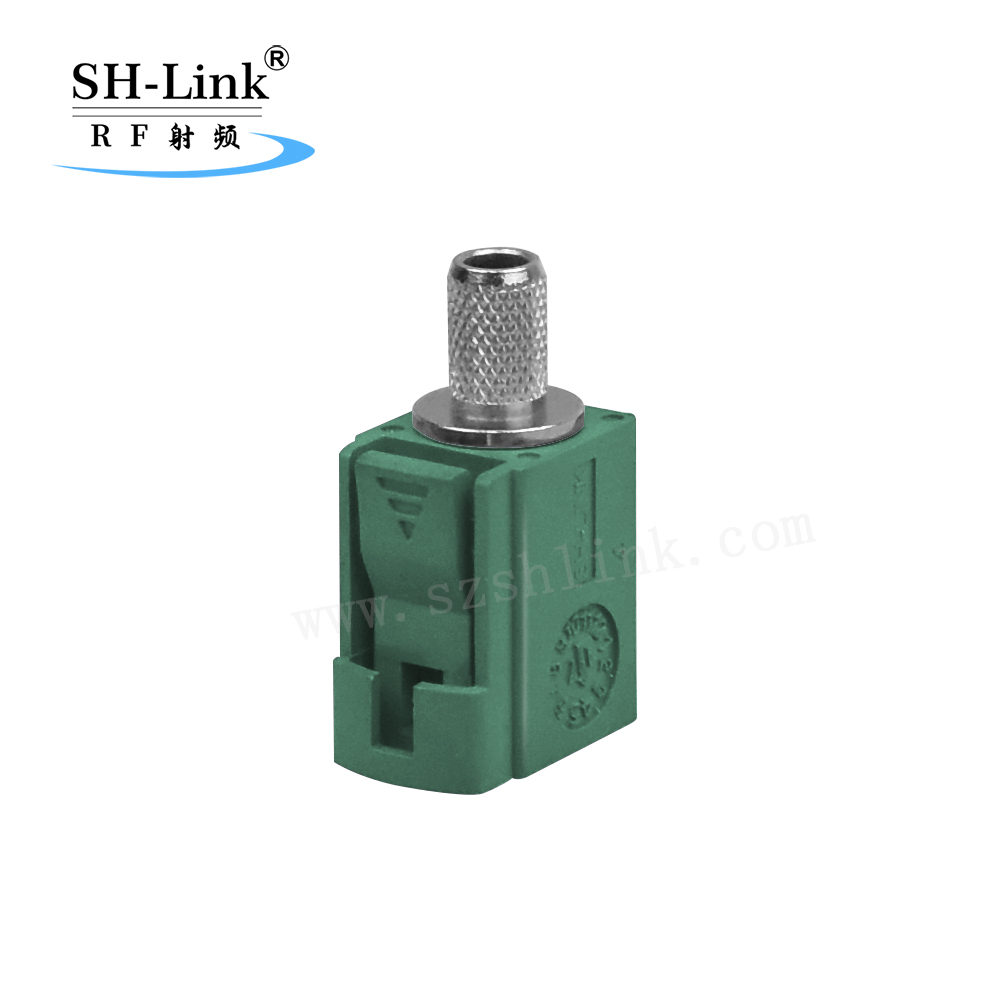

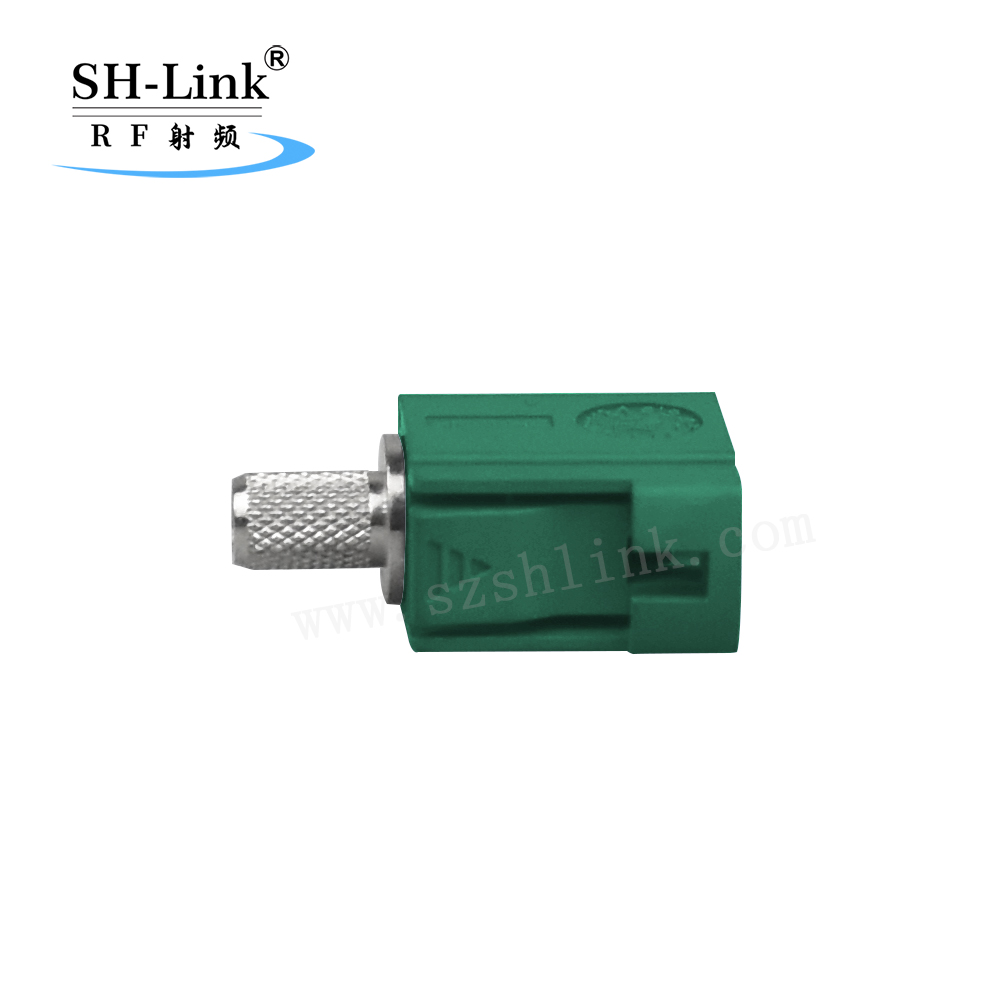

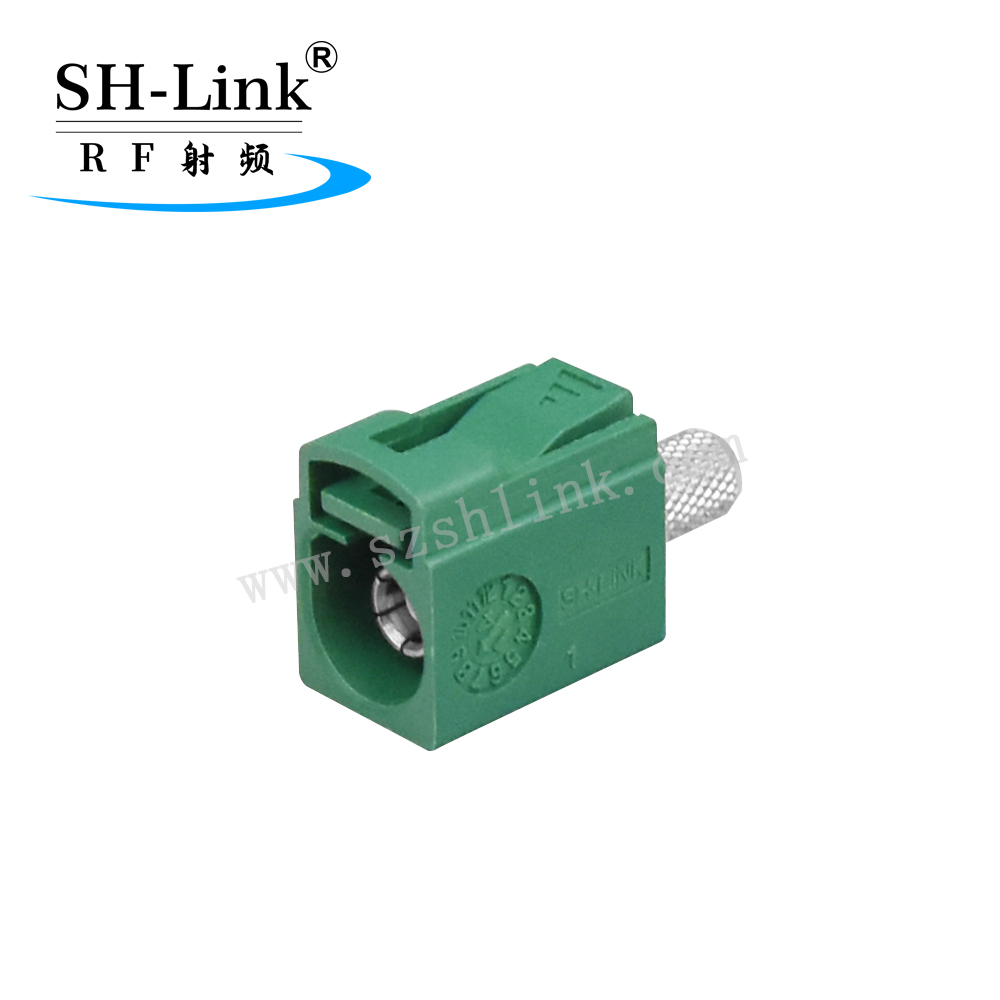

The product shown in the image is Type E, which we offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Please feel free to contact us.

SEND INQUIRY NOW

Product Name

FAKRA Female Connector(Short）

Place of Origin

Guangdong, China

Brand Name

SH-Link

Model Number

SHM.900.0003-34.E

Application

Automotive

Certificate

ISO9001,IATF16949,ISO14001

Cable

RG58

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~4GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
