Radio Microwave Test Plug RF Coaxial Male N Connector for 7/8" Leaky Cable Manufacturer SH-Link

Radio Microwave Test Plug RF Coaxial Male N Connector for 7/8" Leaky Cable Manufacturer SH-Link factory

Radio Microwave Test Plug RF Coaxial Male N Connector for 7/8" Leaky Cable Manufacturer SH-Link

Type N is a Kind of low to medium power connectors with screw coupling. Characteristic impedance has two types: 50Ω and 75Ω. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11 GHz.

SEND INQUIRY NOW

Product Name

N Coaxial Connector

Place of Origin

Guangdong, China

Brand Name

SH-Link

Application

Certificate

ISO9001, IATF16949, ISO14001

Cable

7/8" Leaky Cable

Mating Relations

Can be matched types of same N series and accessories

SEND INQUIRY NOW

Product Details
Company Profile

Product Details

N Male Coaxial Connector

Product Specifications

Applicable Standards	IEC60169-16
Product NO.	N CONNECTOR
Product Design Level	Universal connector (Level 2)

Electrical
Characteristic Impedance	50 ohm
Frequency Range	DC-11GHz
VSWR	≤ 1.10(3.0G)
Insertion loss	≤ 0.10dB
Dielectric Withstanding Voltage	≥2500V RMS,50Hz,at sea level
Dielectric Resistance	≥5000MΩ
Contact Resistance	Center Contact ≤1.0 mΩ Outer Contact ≤0.4 mΩ

Mechanical：
Durability	Mating cycles ≥500

Material d and plating：
Body	Brass，Tri-Alloy
Insulator	PTFFE
Center conductor	Phosphor bronze，Ag

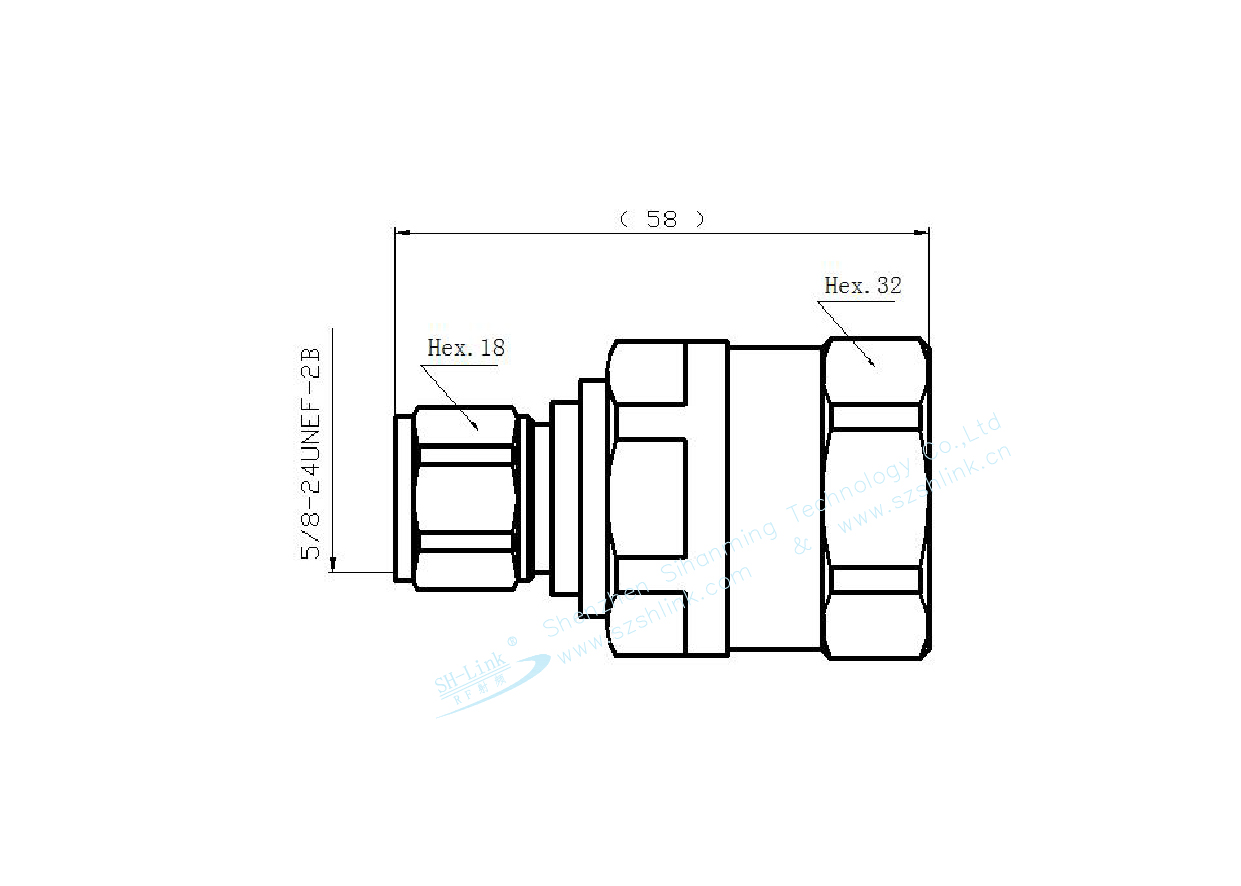

Product Drawings

N Male Coaxial Connector

Type N is a Kind of low to medium power connectors with screw coupling.characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connector is high reliability,great vibration performance,excellent mechanical and electrical performance etc.they are used in connection with RF coaxial cable in radio instrument、communication equipment、microwave test and ground launch system at vibration and inclement weather circumstance.By using semi-rigid or semi-flex cable,this type will gain smaller VSWR,and the frequency can by up to 11 GHz.
