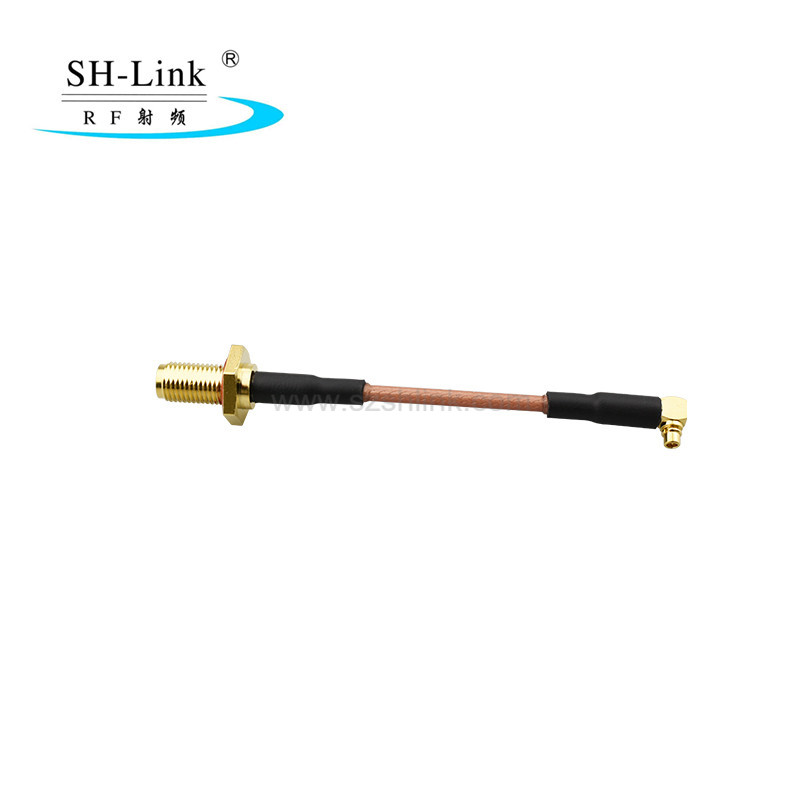

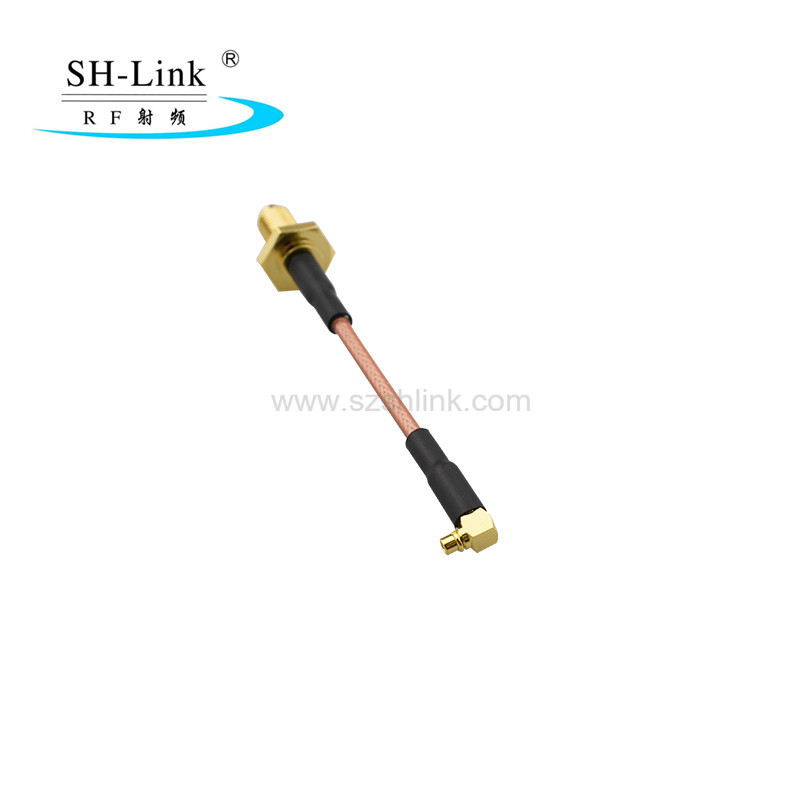

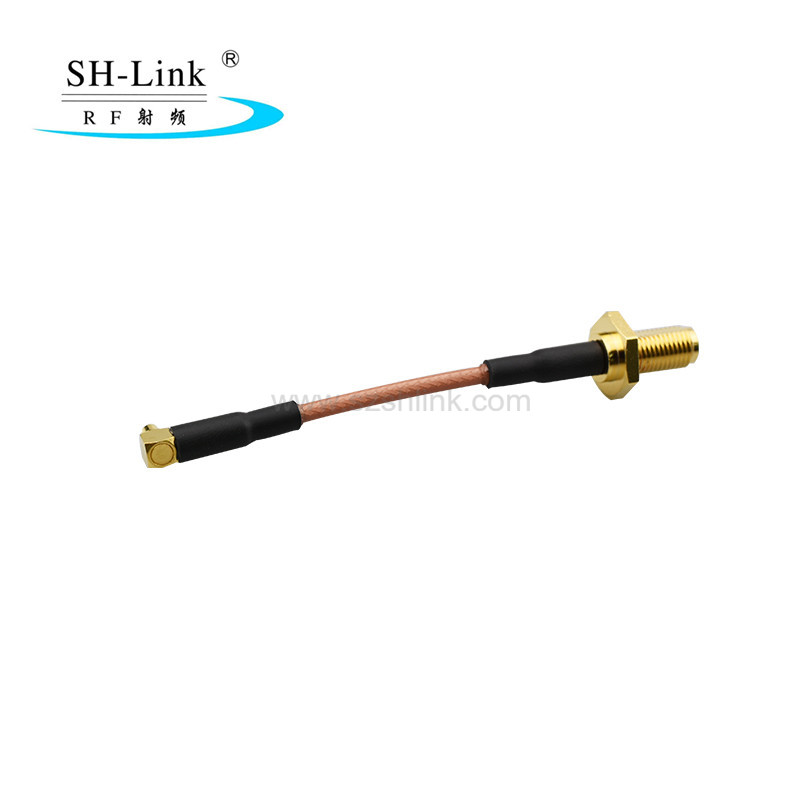

SMA Female to MCX Male Cable Assembly | SH-Link

The SMA female to MCX male cable assembly is mainly used in portable electronic devices, automotive electronic systems, and Industrial Internet of Things (IIoT), and is compatible with RG316 cables.

RG316 cable: Operating frequency DC-6GHz; impedance 50 ohms; outer diameter 2.55mm

SMA connector materials: Housing: Gold-plated brass; Center pin: Gold-plated phosphor bronze; Insulator: PTFE; Back cover: Gold-plated brass; Nut: Gold-plated brass; Sealing ring: Silicone

MCX connector materials: Housing: Gold-plated brass; Center pin: Gold-plated brass; Insulator: PTFE

We offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Inquiries are welcome.

SEND INQUIRY NOW

Product Name

Coaxial Cable Assembly

Place of Origin

Guangdong, China

Brand Name

SH-Link

Model Number

Application

Automotive

Certificate

ISO9001, IATF16949, ISO14001

SEND INQUIRY NOW

Product Details
Company Profile

Product Details

Coaxial Cable Assembly

Product Specifications

Technical Parameters：
Electrical Properties：
Contact Resistance：
Center Contact	≤6mΩ
Outer Contact	≤1mΩ
Insulation Resistance	≥1000MΩ
Medium Pressure	1000V

Environmental Performance：
Temperature Range
Environment temperature	-40℃～+105℃
Salt Fog	＞48Ｈ
Resistance to Moisture	Relative humidity＋40 ℃ When it is up to 95％
