Type N is a Kind of low to medium power connectors with screw coupling.characteristic impedance has two types: 50Ω and 75Ω. The characteristic of connector is high reliability, great vibration performance, excellent mechanical and electrical performance etc. They are used in connection with RF coaxial cable in radio instrument, communication equipment, microwave test and ground launch system at vibration and inclement weather circumstance. By using semi-rigid or semi-flex cable, this type will gain smaller VSWR, and the frequency can by up to 11 GHz.
Applicable Standards | IEC60169-16 |
Product NO. | N CONNECTOR |
Product Design Level | Universal connector (Level 2) |
Universal connector (Level 2): | |
Working Voltage | 1000 V r.m.s |
Temperature Range | -55℃~+125℃ |
Frequency Range | DC-3GHz |
Impedance | 50Ω |

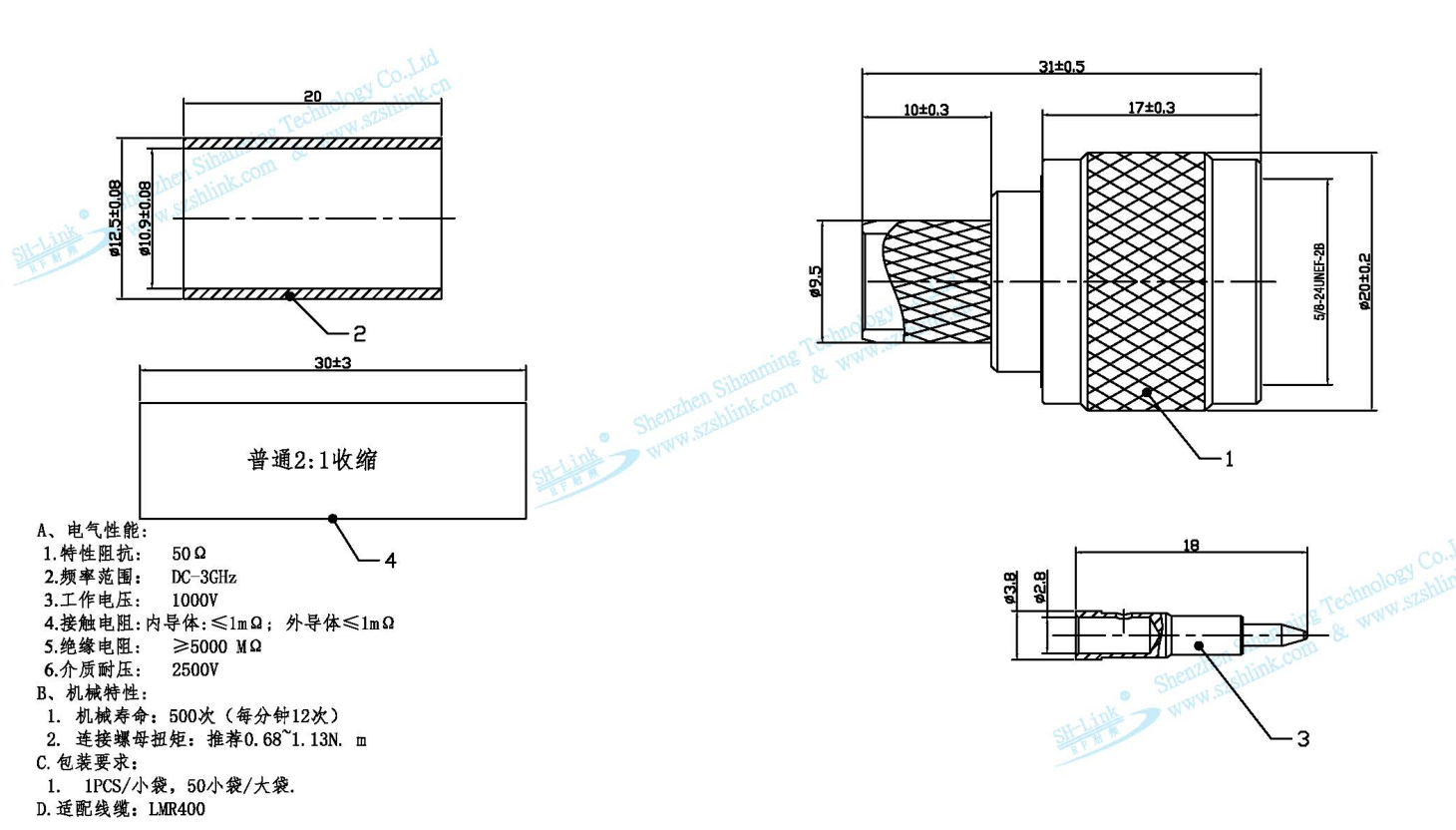

Technical Parameters: | |
Electrical Properties: | |
Contact Resistance: | |
Center Contact | ≤6mΩ |
Outer Contact | ≤1mΩ |
Insulation Resistance | ≥1000MΩ |
Medium Pressure | 1000V( Conform to the MIL-PRF-39012 paragraph 3.17) |
Environmental Performance: | |
Temperature Range | |
Environment temperature | -40℃~+105℃ |
Salt Fog | >48H |
Resistance to Moisture | Relative humidity+40 ℃ When it is up to 95% |

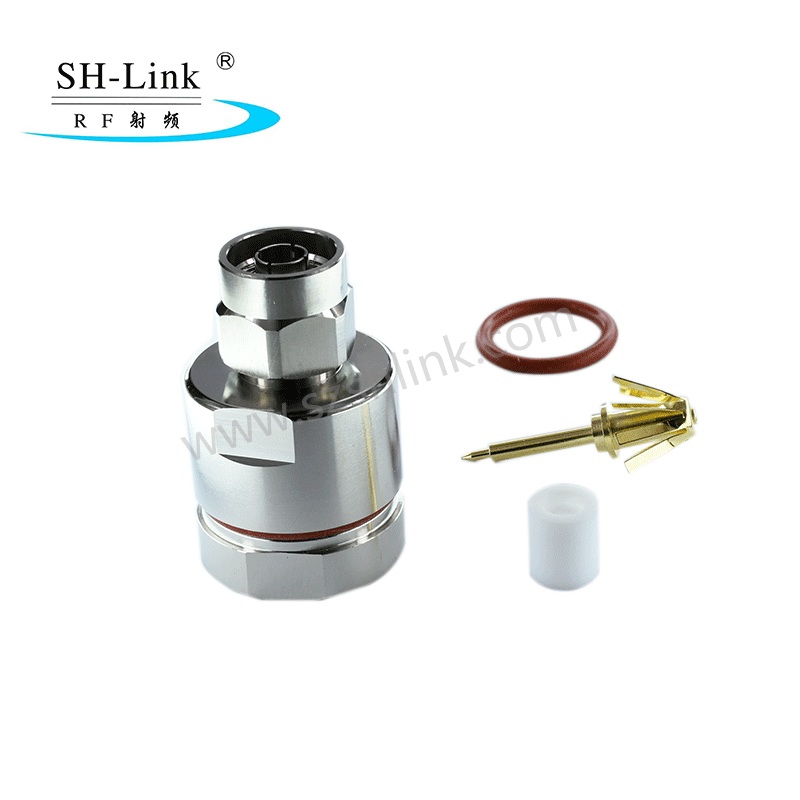

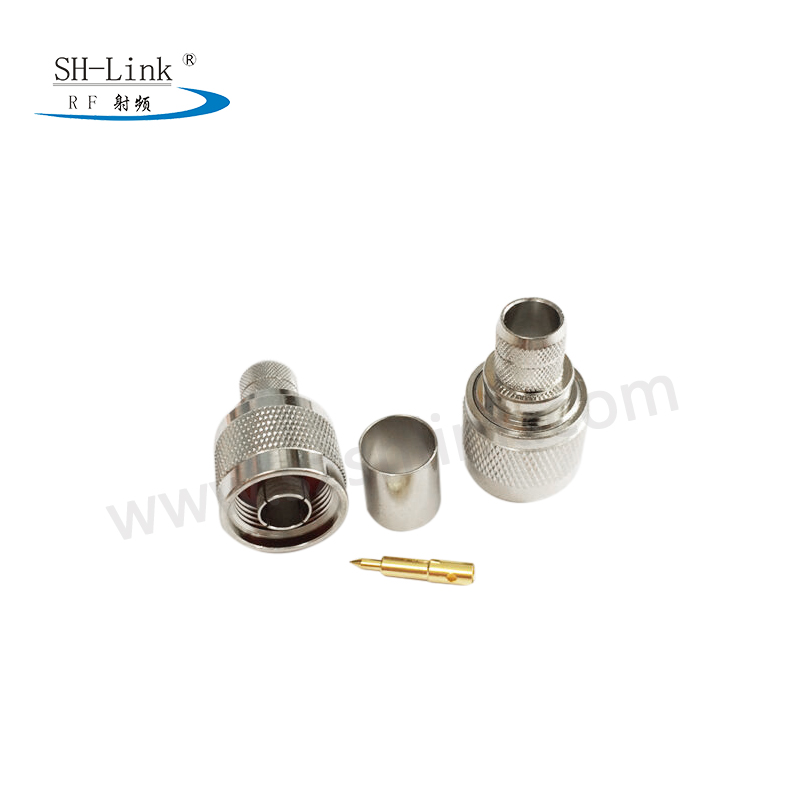

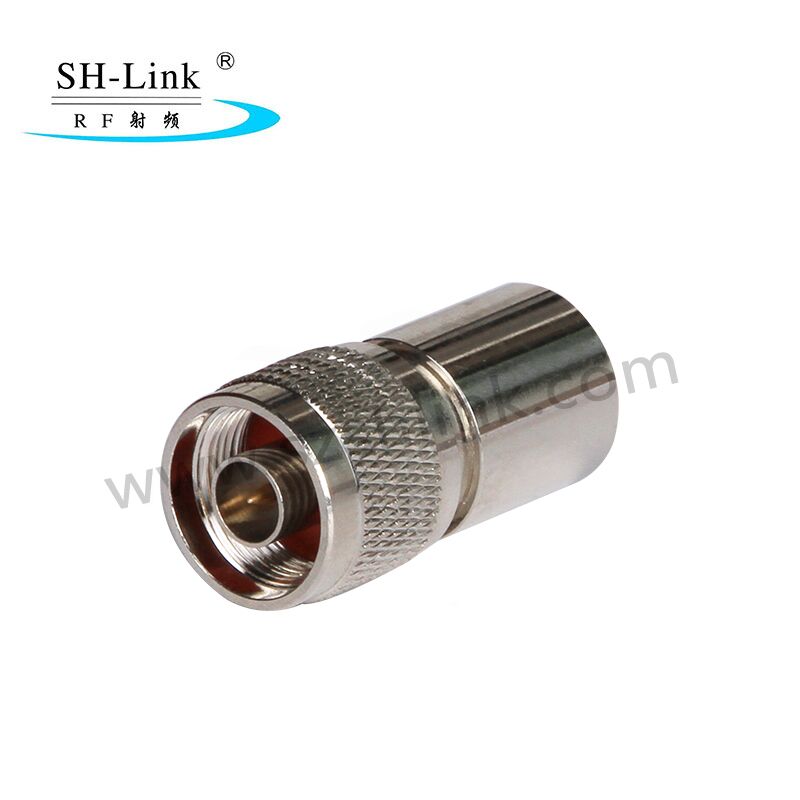

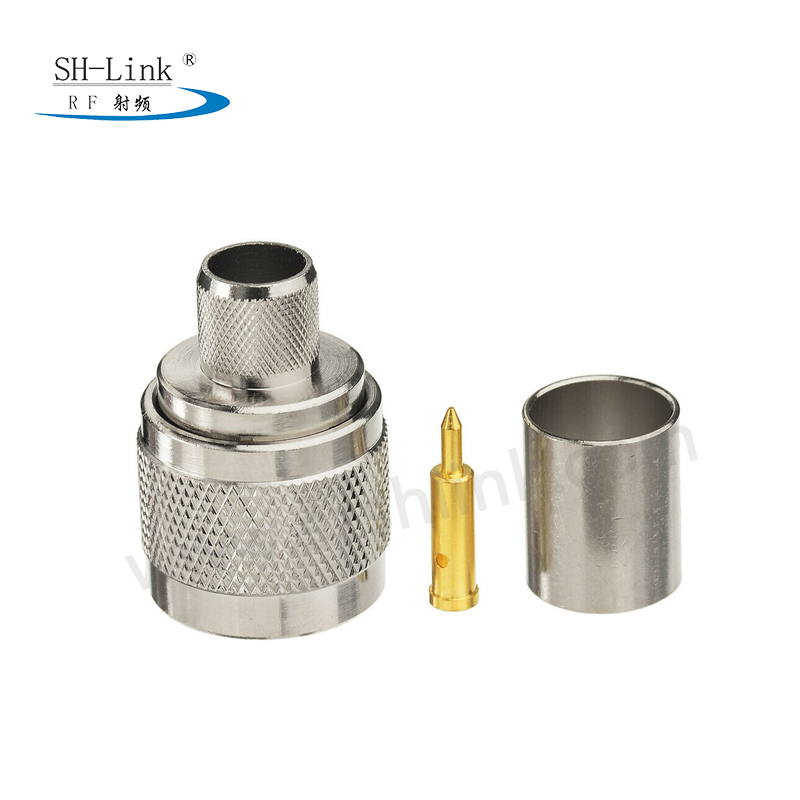

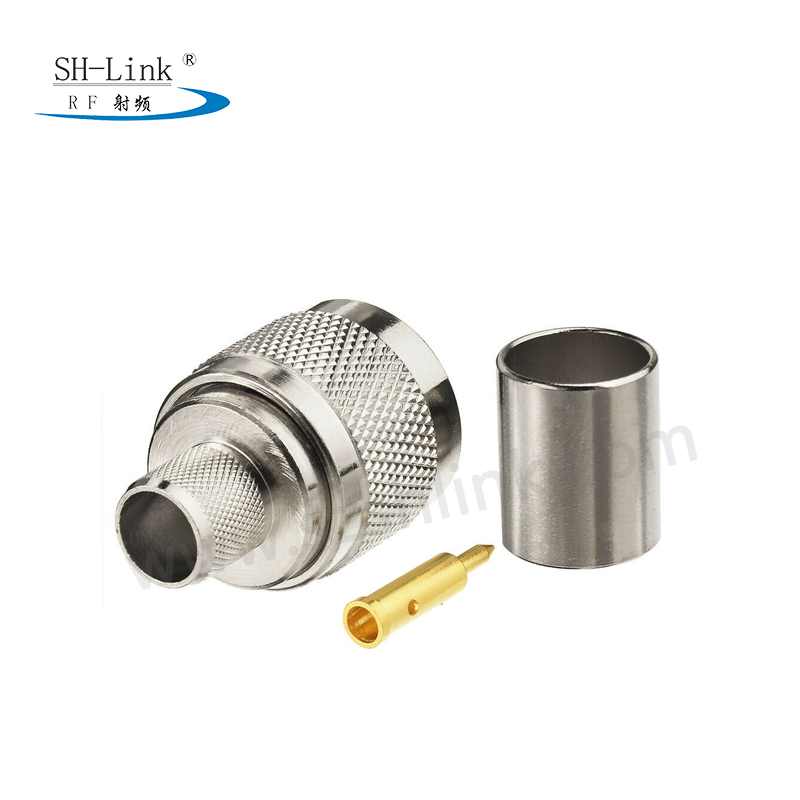

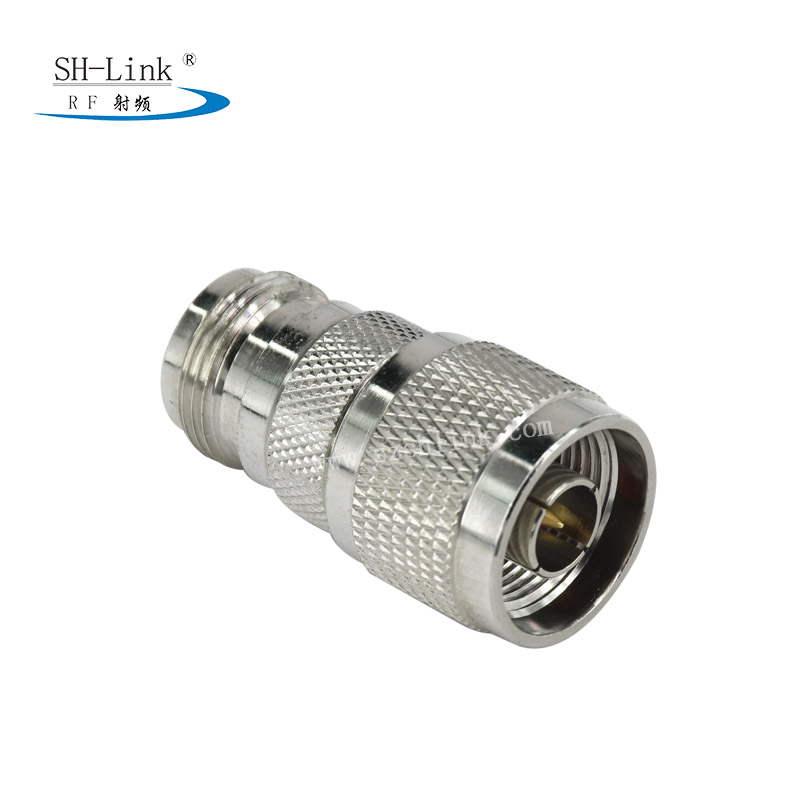

N Coaxial Connector
Type N is a Kind of low to medium power connectors with screw coupling.characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connector is high reliability,great vibration performance,excellent mechanical and electrical performance etc.they are used in connection with RF coaxial cable in radio instrument、communication equipment、microwave test and ground launch system at vibration and inclement weather circumstance.By using semi-rigid or semi-flex cable,this type will gain smaller VSWR,and the frequency can by up to 11 GHz.
