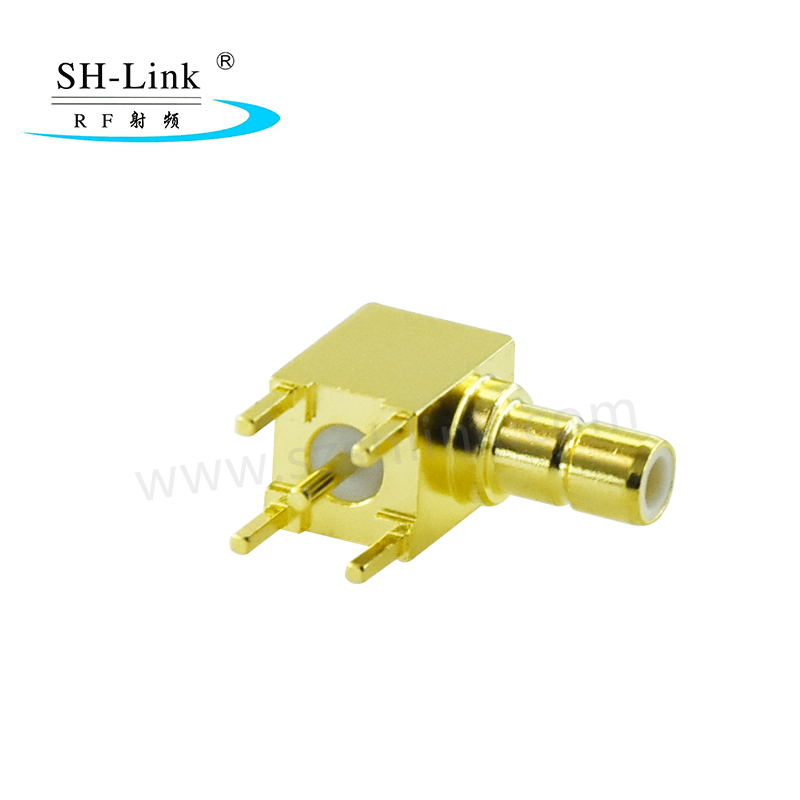

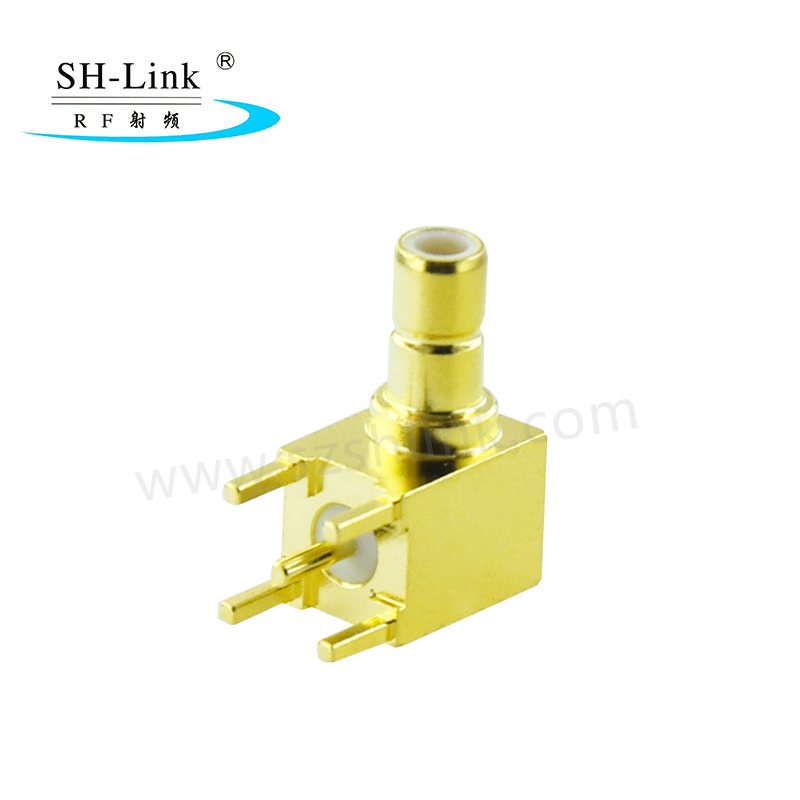

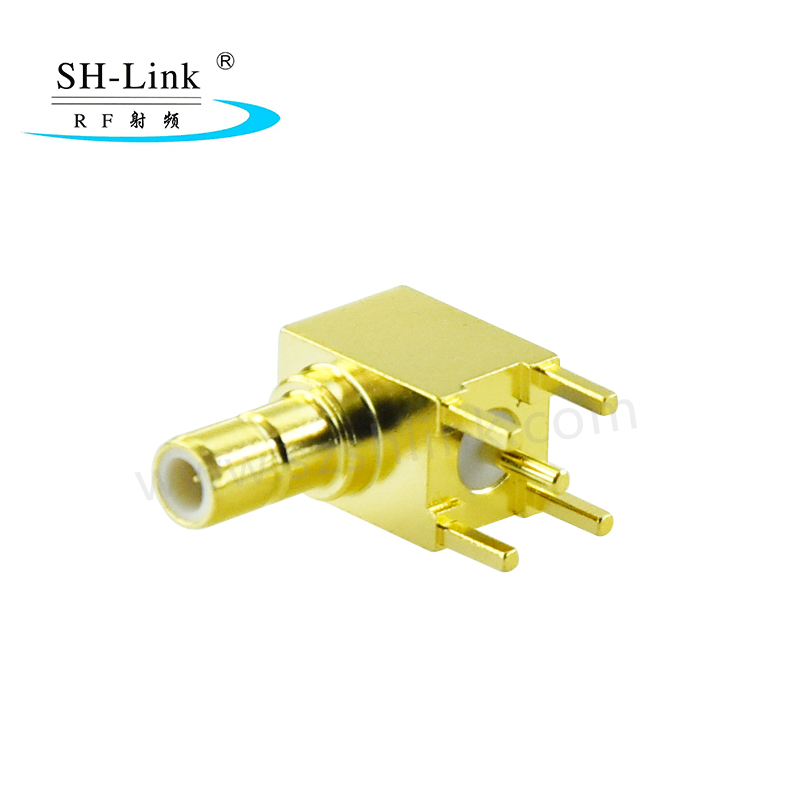

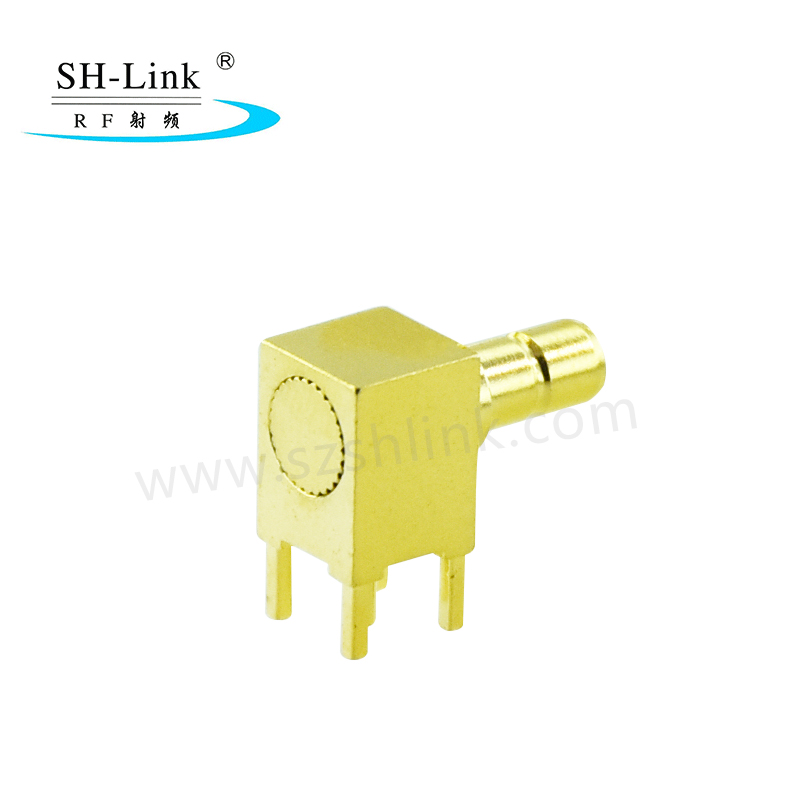

TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small Volume 、Light weight、excellent electrical performance、Easy to use.They are widely used in connection with RF coaxial cable in RF circuit of radio communication、test instrument、meter、radio station、TV station、the base ststion of the microwave system.
Applicable Standards | MIL-C-3901、2IEC60169-10 |
Product NO. | SMB CONNECTOR |
Product Design Level | Universal connector (Level 2) |
Universal connector (Level 2): | |
Working Voltage | 335V |
Temperature Range | -40℃~+85℃ |
Frequency Range | / |
Impedance | 50Ω |
Technical Parameters: | |
Electrical Properties: | |
Contact Resistance: | |
Center Contact | ≤6mΩ |
Outer Contact | ≤1mΩ |
Insulation Resistance | ≥1000MΩ |
Medium Pressure | 1000V( Conform to the MIL-PRF-39012 paragraph 3.17) |
Environmental Performance: | |
Temperature Range | |
Environment temperature | -40℃~+105℃ |
Salt Fog | >48H |
Resistance to Moisture | Relative humidity+40 ℃ When it is up to 95% |
SMA Coaxial Connector
TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small Volume 、Light weight、excellent electrical performance、Easy to use.They are widely used in connection with RF coaxial cable in RF circuit of radio communication、test instrument、meter、radio station、TV station、the base ststion of the microwave system.
