SMB Board-Ended Right-Angle Female Connector | SH-Link

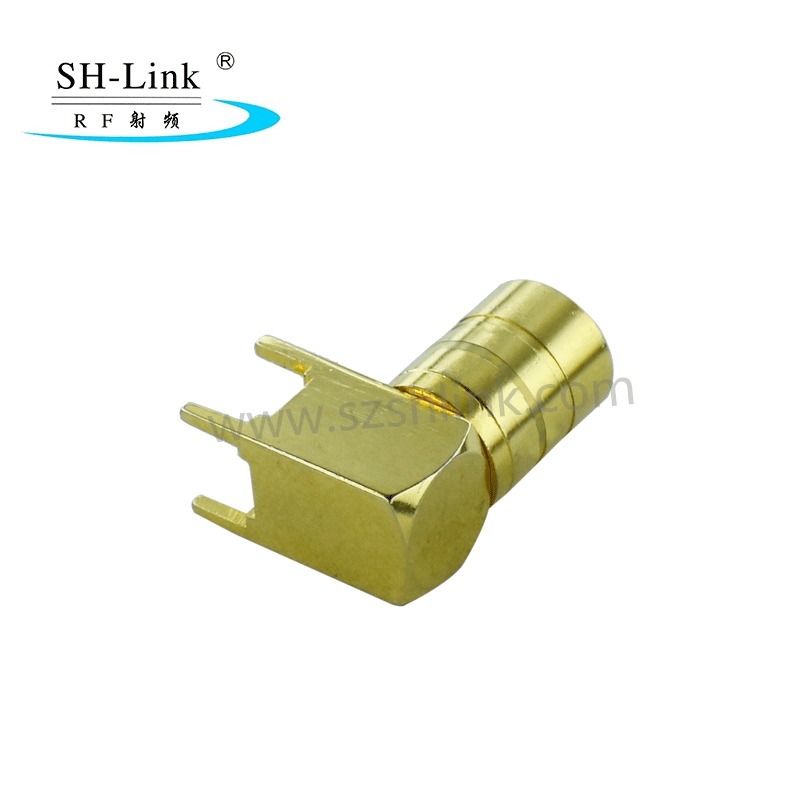

SMB Board-Ended Right-Angle Female Connector | SH-Link

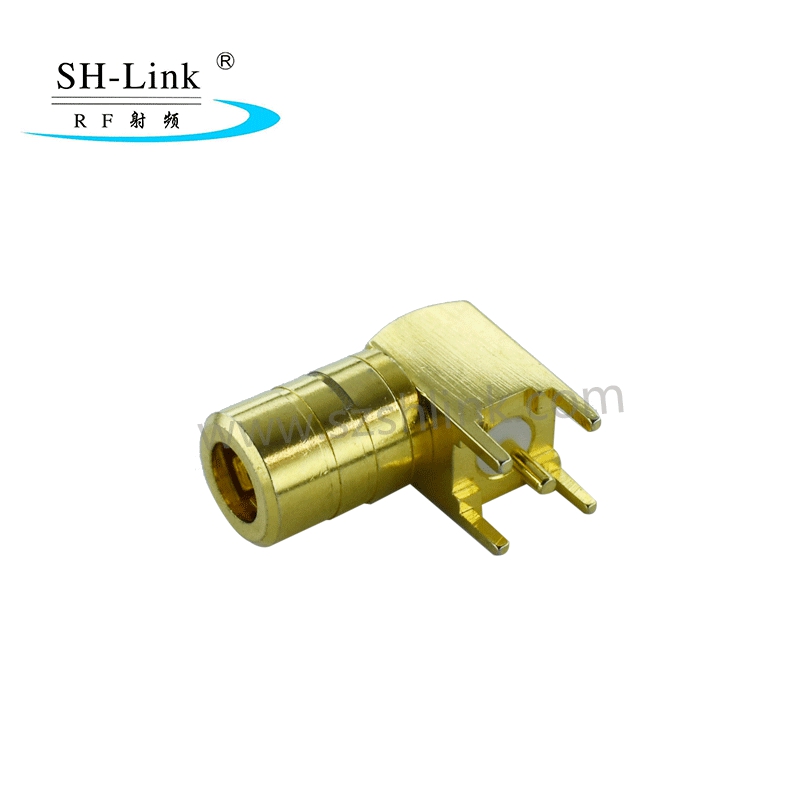

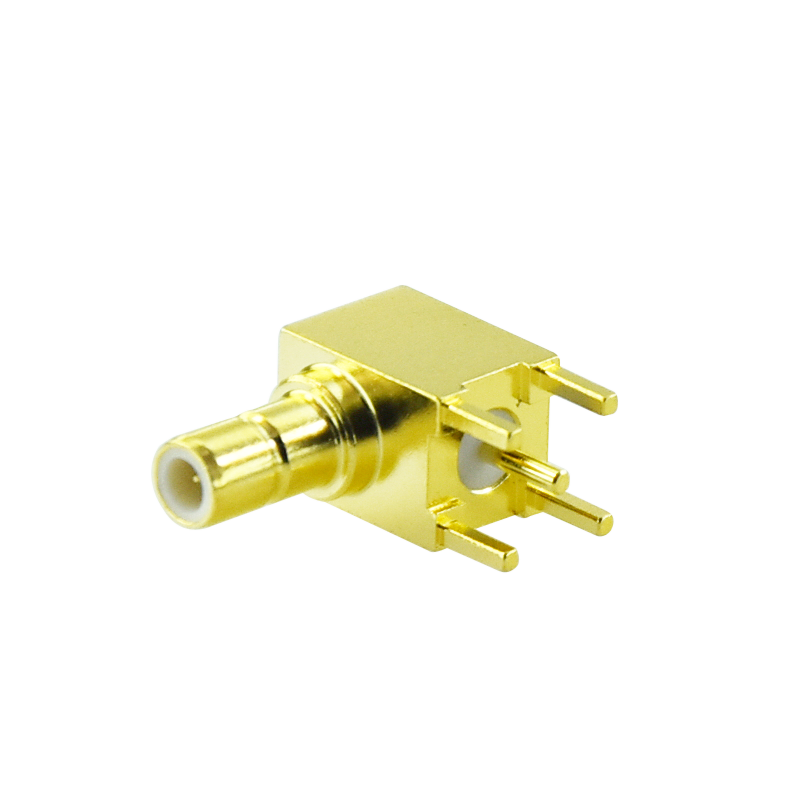

The SMB board-ended right-angle female connector is a 50Ω impedance RF coaxial connector with a 90° right-angle bend. It can be directly surface-mounted or soldered onto the PCB. This connector uses a snap-fit connection with the SMB male connector, allowing for quick and easy locking without screws. It can change the routing direction, solving installation challenges such as insufficient vertical space and interference from internal wiring. Its main function is to facilitate signal transmission between the circuit board and external antennas and RF cables.

Frequency Range: DC to 3GHz, Impedance: 50Ω

Materials:

House: Gold-plated brass

Insulator: Teflon

Center Pin: Gold-plated bronze

SEND INQUIRY NOW

Product Name

SMB Coaxial Connector

Place of Origin

Guangdong,Chine

Brand Name

SH-Link

Model Number

SH3.650.304

Application

Certificate

ISO9001,IATF16949,ISO14001

Mating Relations

Can be matched types of same SMB series and accessories

SEND INQUIRY NOW

Product Details
Company Profile

Product Details

SMB Coaxial Connector

Product Specifications

Applicable Standards	MIL-C-3901、2IEC60169-10
Product NO.	SMB CONNECTOR
Product Design Level	Universal connector (Level 2)

Universal connector (Level 2)：
Working Voltage	335V
Temperature Range	-40℃～＋85℃
Frequency Range	DC-3GHz
Impedance	50Ω

Technical Parameters：
Electrical Properties：
Contact Resistance：
Center Contact	≤6mΩ
Outer Contact	≤1mΩ
Insulation Resistance	≥1000MΩ
Medium Pressure	1000V( Conform to the MIL-PRF-39012 paragraph 3.17)

Environmental Performance：
Temperature Range
Environment temperature	-40℃～+105℃
Salt Fog	＞48Ｈ
Resistance to Moisture	Relative humidity＋40 ℃ When it is up to 95％

Product Drawings

SMA Coaxial Connector

TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small Volume 、Light weight、excellent electrical performance、Easy to use.They are widely used in connection with RF coaxial cable in RF circuit of radio communication、test instrument、meter、radio station、TV station、the base ststion of the microwave system.
