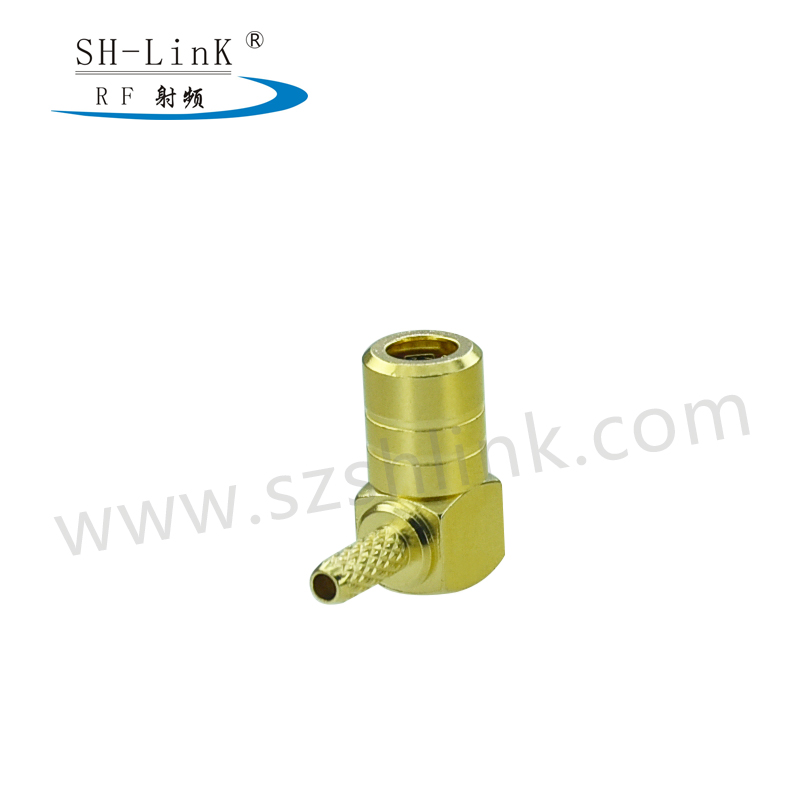

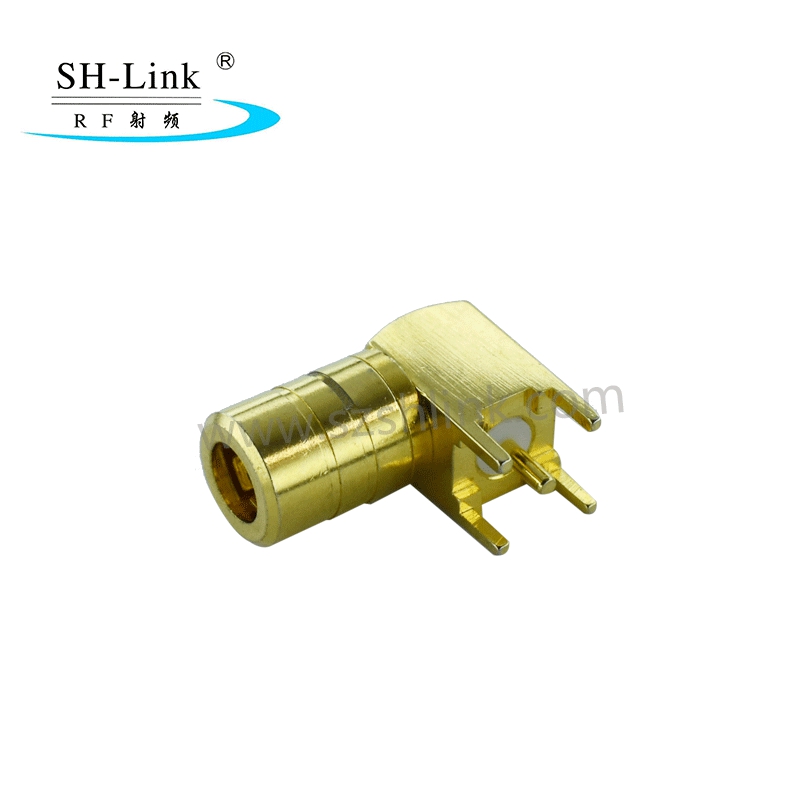

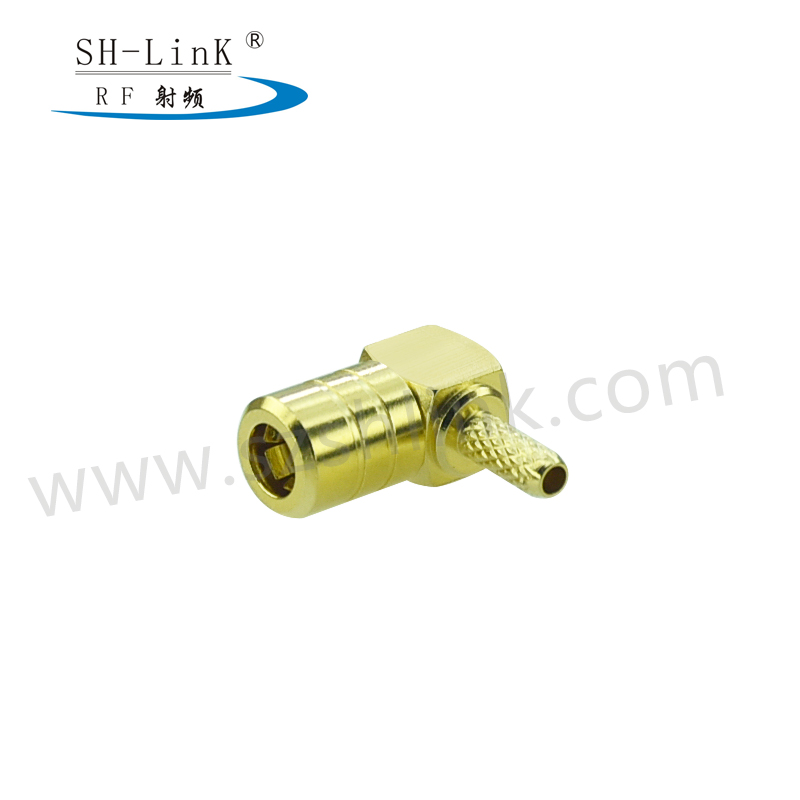

The SMB female connector is suitable for connecting RF cables in radio communications, testing instruments, meters, radio and television base stations, and microwave systems. The connector is compatible with RG174 and RG316 cables.

The connector operates at a frequency of DC-4GHz; has an impedance of 50 ohms; and operates at a temperature of -40℃ to +185℃.

Connector Materials: Housing: Gold-plated brass; Center pin: Gold-plated brass; Back cover: Gold-plated brass

Insulator: PTFE; Copper tube: Gold-plated brass

We offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Inquiries are welcome.

SEND INQUIRY NOW

Product Name

SMB Coaxial Connector

Place of Origin

Guangdong,Chine

Brand Name

SH-Link

Model Number

SH3.650.031

Application

Certificate

ISO9001,IATF16949,ISO14001

Cable

RG174,RG316

Mating Relations

Can be matched types of same SMB series and accessories

SEND INQUIRY NOW

Product Details
Company Profile

Product Details

SMB Coaxial Connector

Product Specifications

Applicable Standards	MIL-C-3901、2IEC60169-10
Product NO.	SMB CONNECTOR
Product Design Level	Universal connector (Level 2)

Universal connector (Level 2)：
Working Voltage	335V
Temperature Range	-40℃～＋85℃
Frequency Range	DC-4GHz(50Ω); DC-2GHz(75Ω)
Impedance	50Ω/75Ω

Technical Parameters：
Electrical Properties：
Contact Resistance：
Center Contact	≤6mΩ
Outer Contact	≤1mΩ
Insulation Resistance	≥1000MΩ
Medium Pressure	1000V( Conform to the MIL-PRF-39012 paragraph 3.17)

Environmental Performance：
Temperature Range
Environment temperature	-40℃～+105℃
Salt Fog	＞48Ｈ
Resistance to Moisture	Relative humidity＋40 ℃ When it is up to 95％

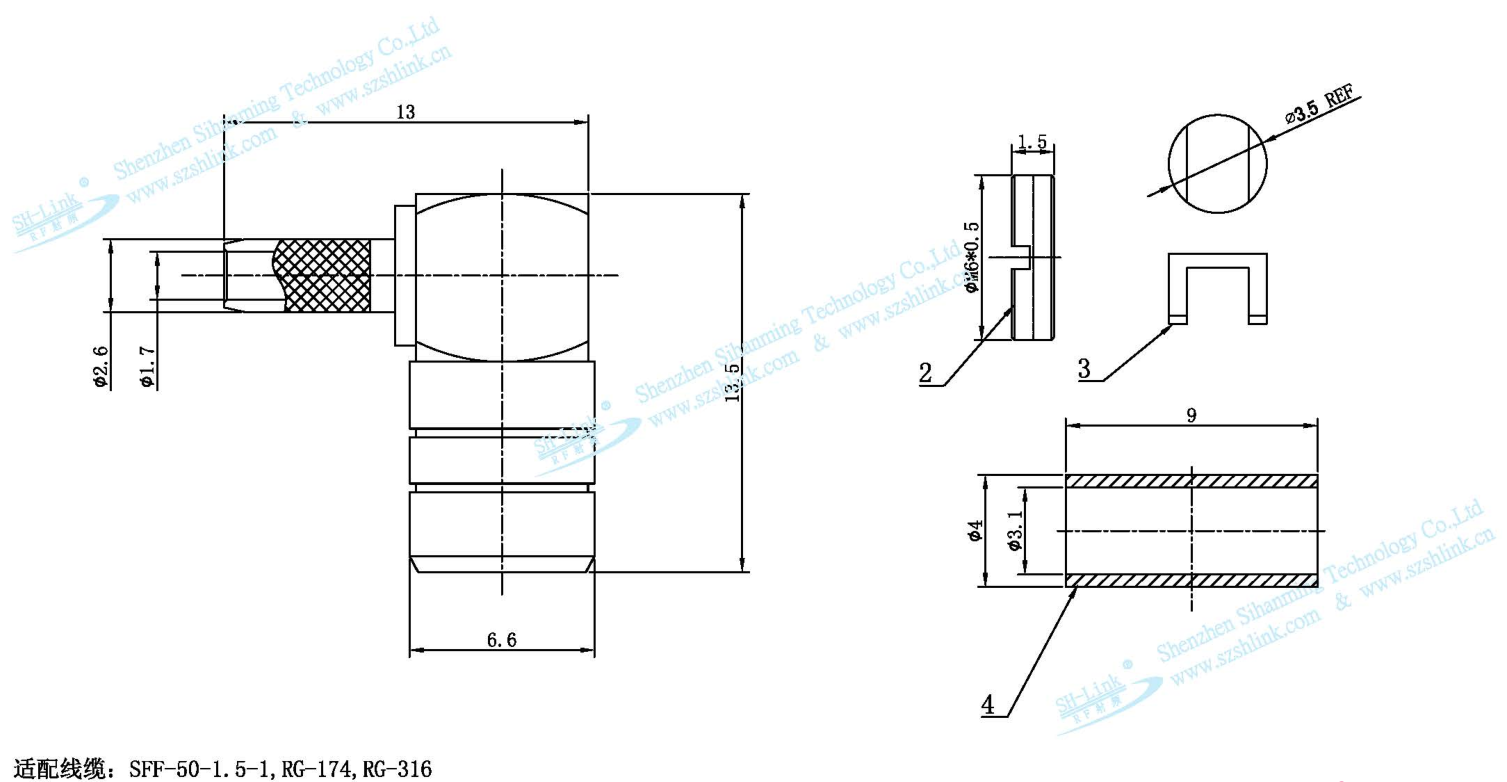

Product Drawings

SMA Coaxial Connector

TYPE SMB Products is one Kind of low power miniature RF coaxial Connectors with snap-on coupling mechanism.Characteristic impedance has two types: 50Ω and 75Ω.The characteristic of connectors is in small Volume 、Light weight、excellent electrical performance、Easy to use.They are widely used in connection with RF coaxial cable in RF circuit of radio communication、test instrument、meter、radio station、TV station、the base ststion of the microwave system.
