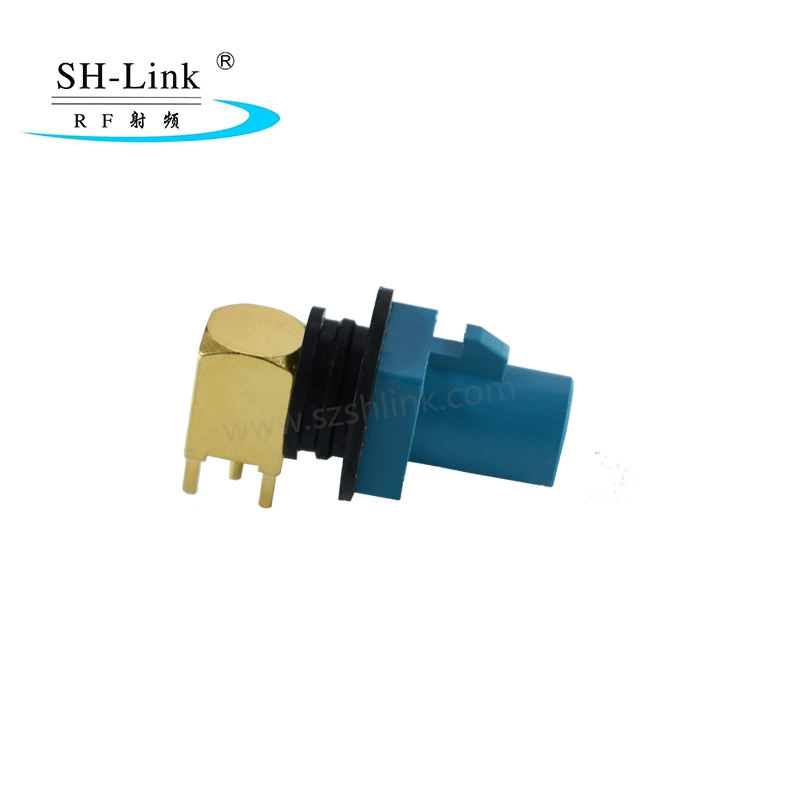

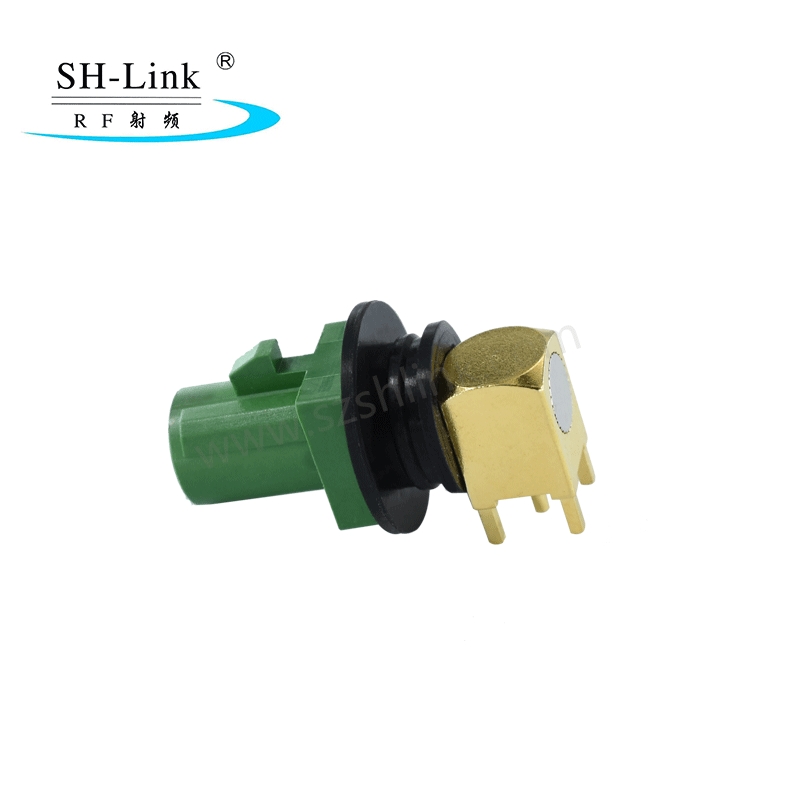

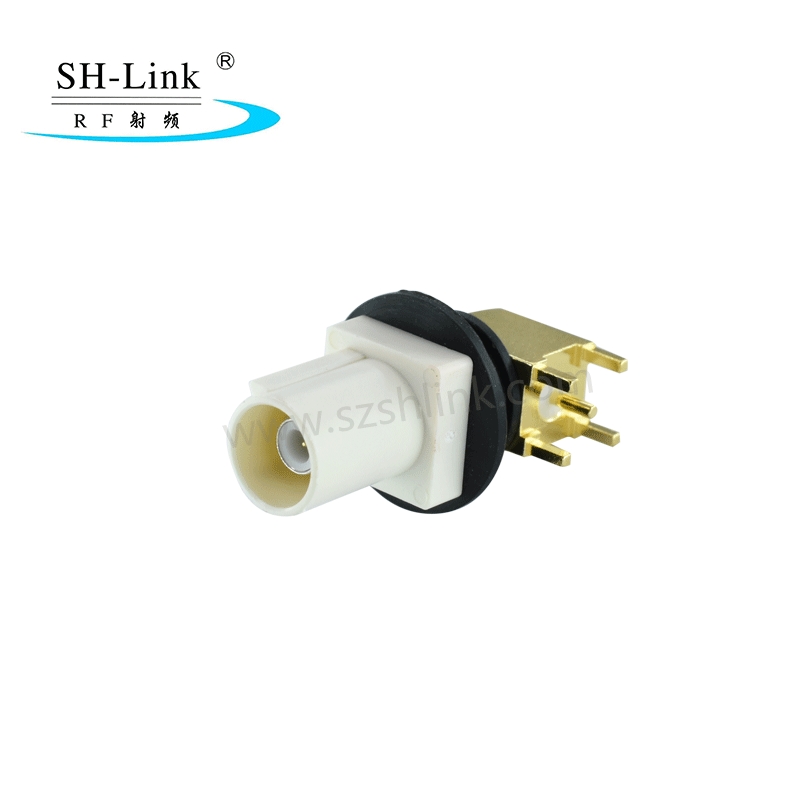

Fakra PCB Angled Male Connectors (90 Degrees) Type B | SH-Link

Fakra PCB Angled Male Connectors (90 Degrees) Type B are suitable for PCB motherboards in in-vehicle smart key systems, navigation/audio-visual equipment, ADAS sensors, and T-BOX/Wi-Fi modules.

Operating frequency: DC-6GHz; Impedance: 50 ohms

Connector materials: Front shell: Nickel-plated brass; Rear connector: Gold-plated brass; Rear cover: Nickel-plated brass; Center pin: Gold-plated phosphor bronze; Insulator: PTFE; Insulator: LCP; Rear plug: Nickel-plated brass; Shell: PA66+30%GF；Sealing ring: silicone

This FAKRA connector is available in 14 sizes: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

The product shown is Type B, which we offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Please feel free to contact us.

SEND INQUIRY NOW

Product Name

FAKRA Male Connector For PCB

Place of Origin

Guangdong,China

Brand Name

SH-Link

Model Number

SHM.900.0006-39.B

Application

Automotive

Certificate

ISO9001,IATF16949,ISO14001

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

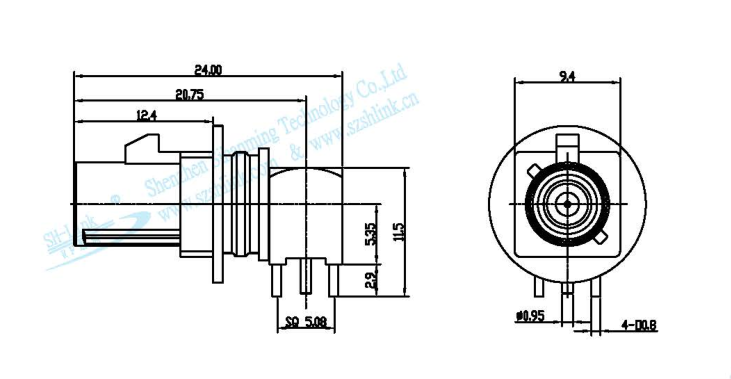

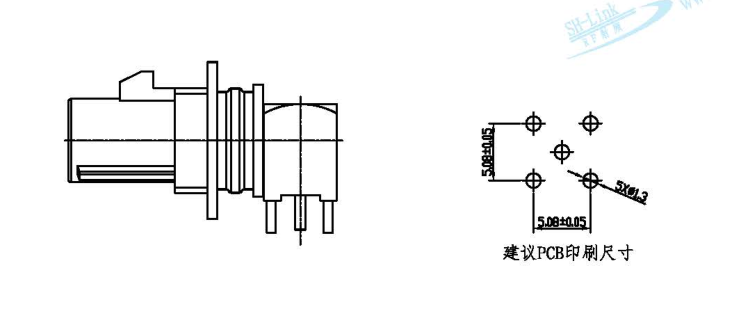

Specification Drawing

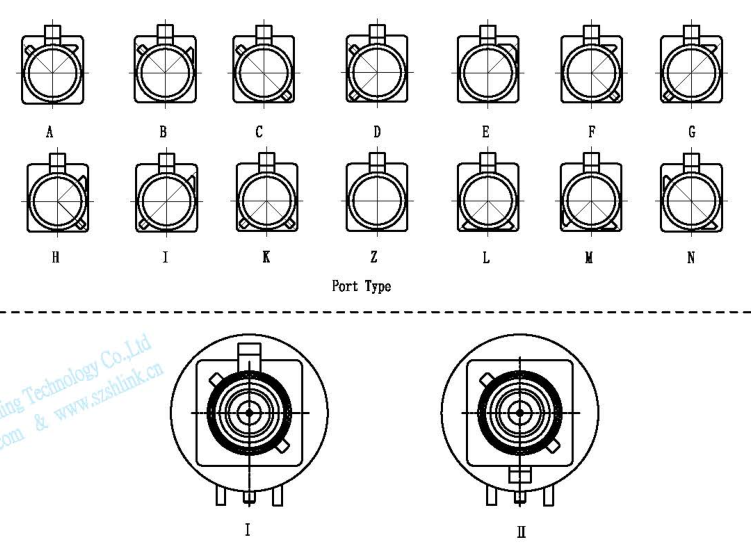

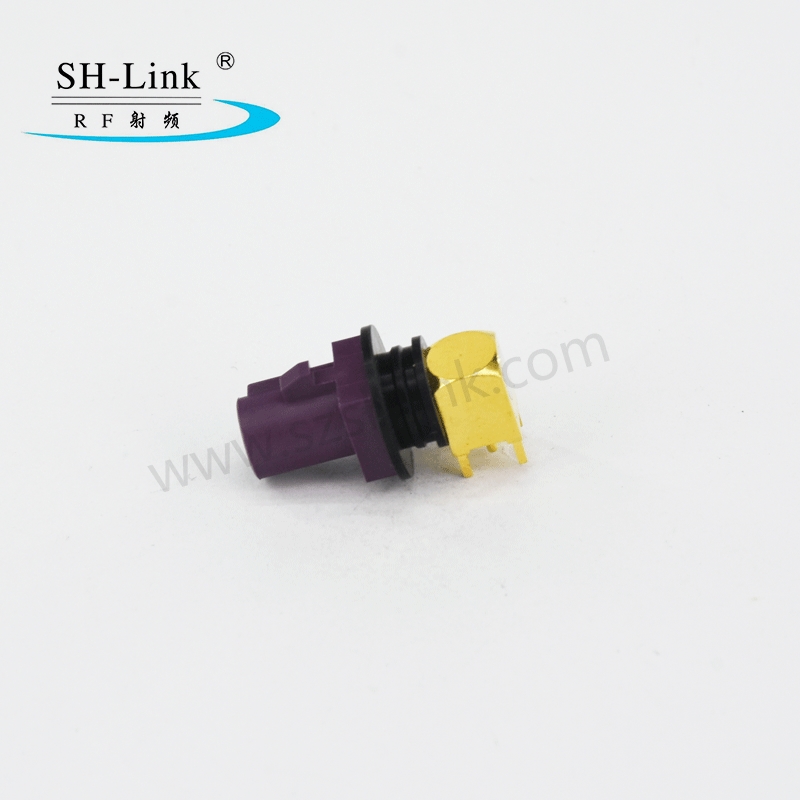

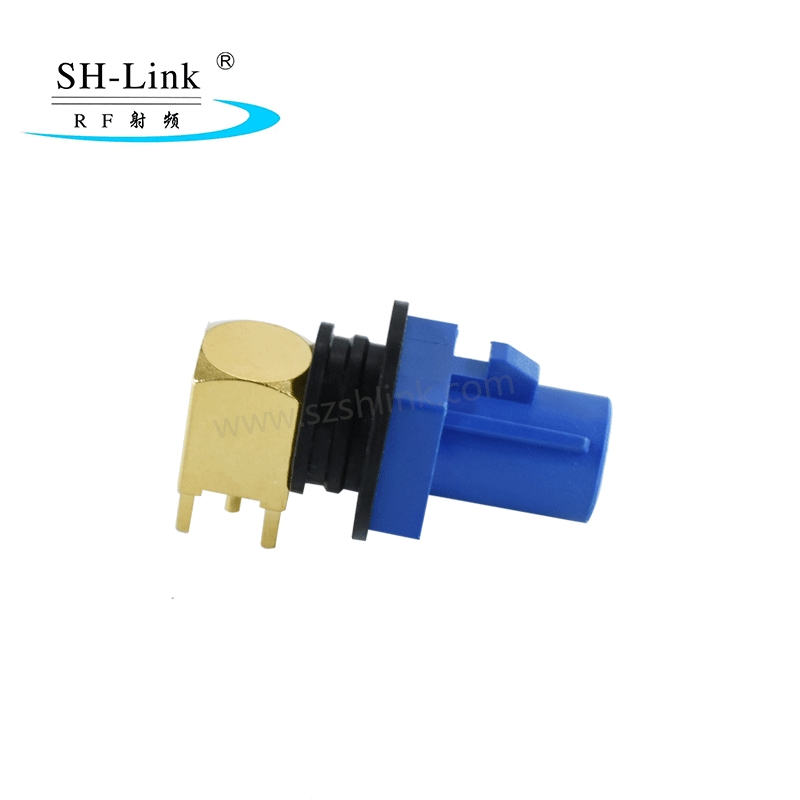

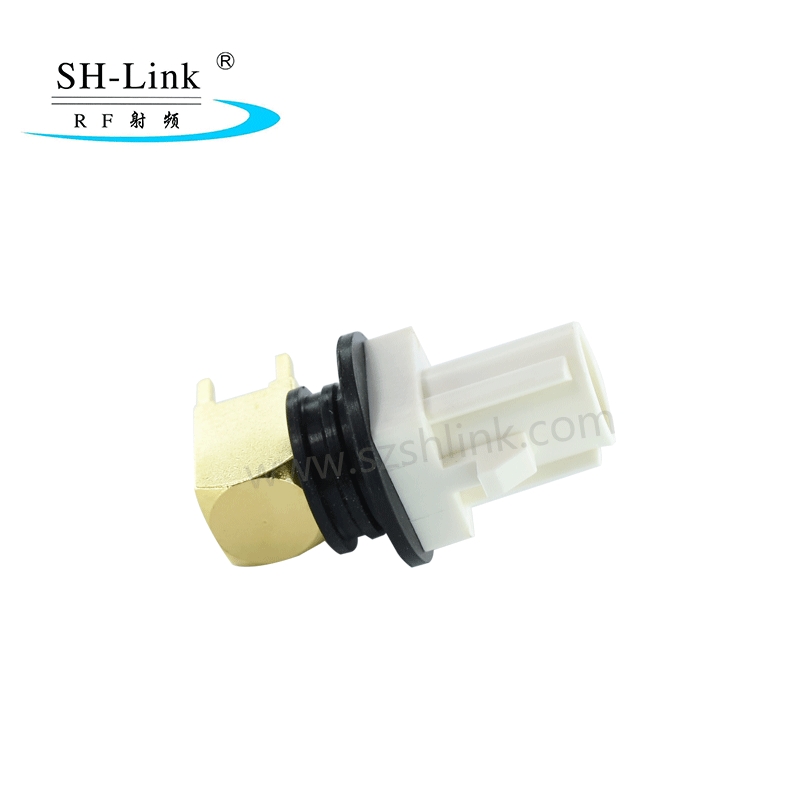

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~6GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
