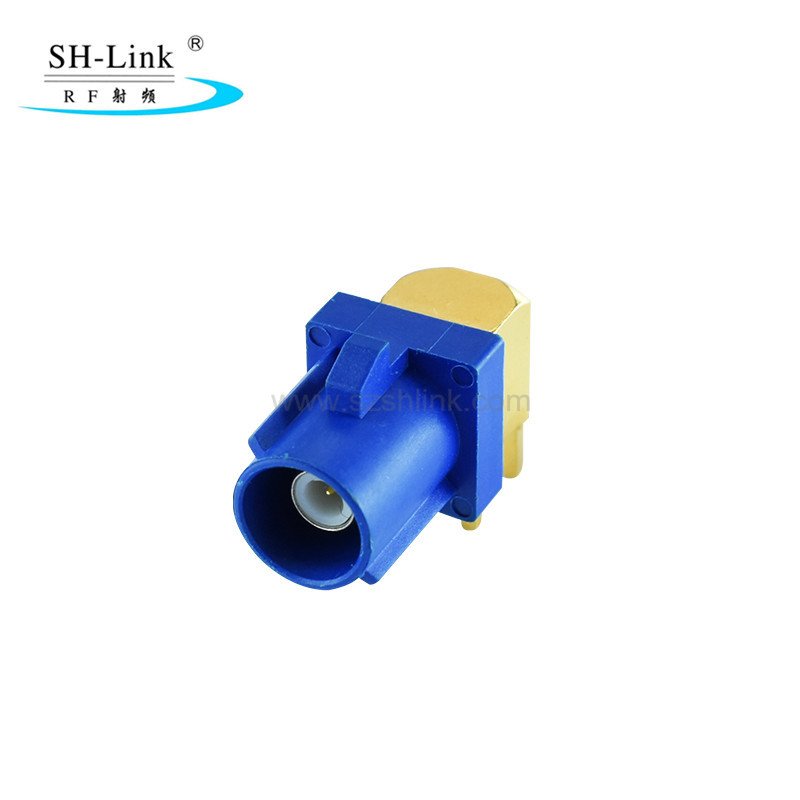

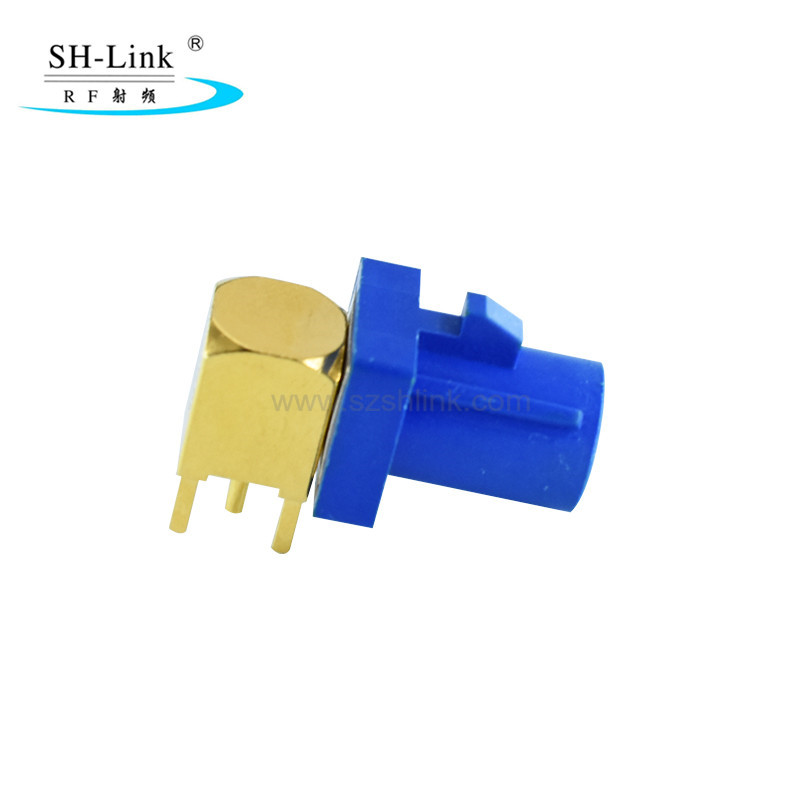

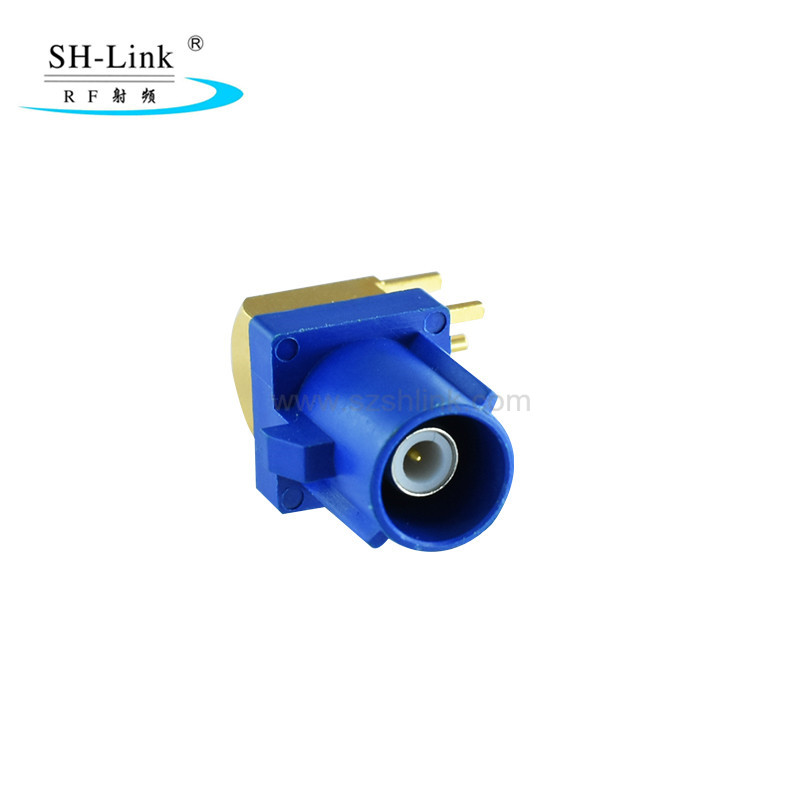

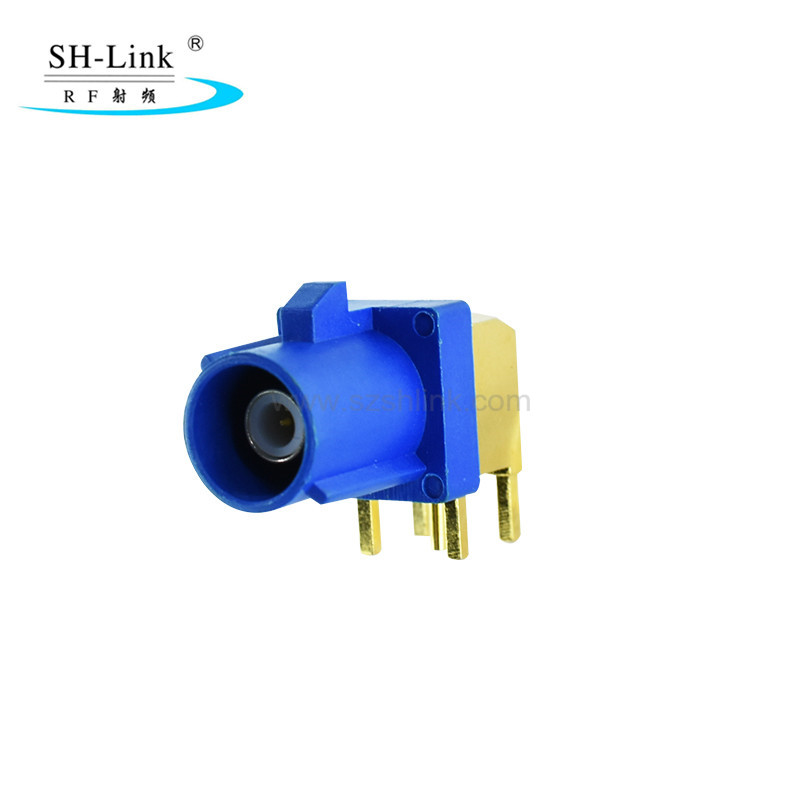

FAKRA Male Connector for PCB (90°) Type C | SH-Link

FAKRA Male Connector for PCB (90°) Type C | SH-Link

The FAKRA Male Connector for PCB (90°) Type C is widely used in automotive navigation systems, remote control, car phones, car TVs, audio equipment, antennas, etc., and can also be used in Bluetooth, remote vehicle diagnostics, and other systems to achieve stable transmission of radio frequency signals.

Operating frequency: DC-4GHz; Impedance: 50 ohms; Operating temperature: -40℃～＋85℃

Connector materials: Front shell: Nickel-plated brass; Rear seat: Gold-plated brass; Rear cover: Nickel-plated brass; Center pin: Gold-plated phosphor bronze; Insulator: PTFE; Insulator: LCP; Rear plug: Nickel-plated brass; Shell: PA66+30%GF

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

The product shown is a C-type. We offer high-quality, high-volume production. We also provide custom lengths and sizes at reasonable prices, ensuring safety and reliability. Inquiries are welcome.

SEND INQUIRY NOW

Product Name

FAKRA Male Connector For PCB

Place of Origin

Guangdong,China

Brand Name

SH-Link

Model Number

SHM.900.0006-40.C

Application

Automotive

Certificate

ISO9001,IATF16949,ISO14001

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~4GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
