FAKRA Screw Thread Male Connector

HOME > PRODUCTS > Connectors > Fakra Automotive Connectors > FAKRA Screw Thread Male Connector

Recommended

Replay

Recommended

Fakra Female Connector (Long) | SH-Link

Fakra Long Male SMB Connector | SH-Link

Fakra Female (90-degree) Connector | SH-Link

fakra smb connector FAKRA Male Connectors (Straight) | SH-Link

FAKRA Screw Thread Male Connector Type Z | SH-Lin

FAKRA Screw Thread Male Connector Type Z | SH-Lin in Shenzhen

FAKRA Screw Thread Male Connector Type Z | SH-Lin

The FAKRA Screw Thread Male Connector Type Z is primarily used for automotive repair testing, prototype vehicle development and debugging, emergency replacement of damaged standard FAKRA connectors, and general temporary connections between test instruments and various automotive antenna systems. The connector is compatible with RG178/1.13/1.37 cables.

The connector operates at a frequency of DC-6GHz; impedance of 50 ohms; and an operating temperature of -40℃ to +85℃.

Connector materials: Shell: Brass ternary alloy 120180U''; Insulator: PTFE; Outer shell: PA66+30%GF; Center pin: Brass gold-plated 5~7U”; Sealing ring: Black silicone; Clamping ring: Phosphor bronze nickel-plated; Copper tube: Phosphor bronze nickel-plated; Nut: Brass nickel-plated.

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, and N. Each size corresponds to a different color, and different sizes are incompatible.

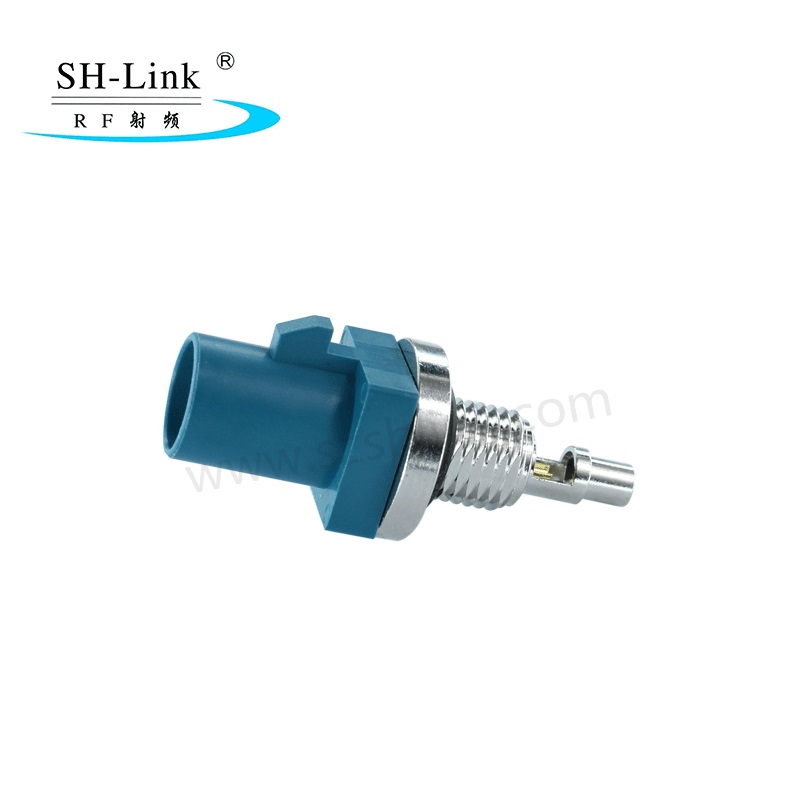

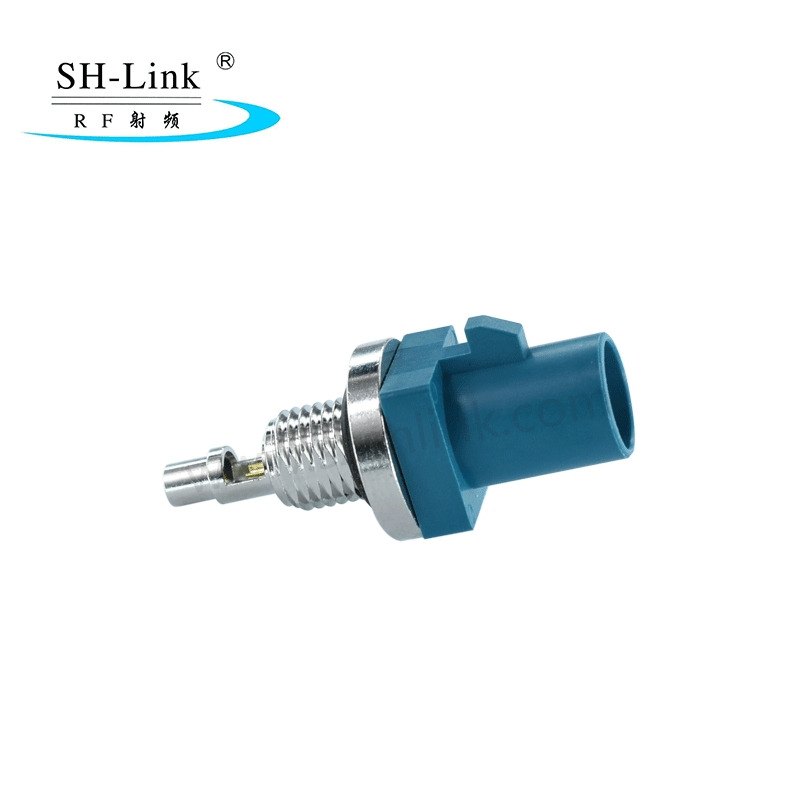

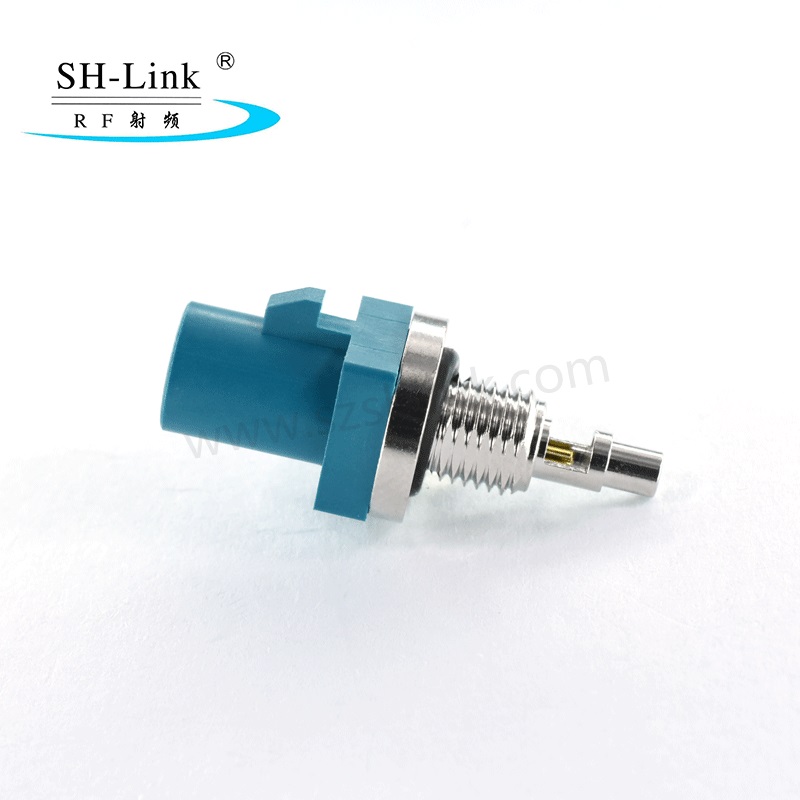

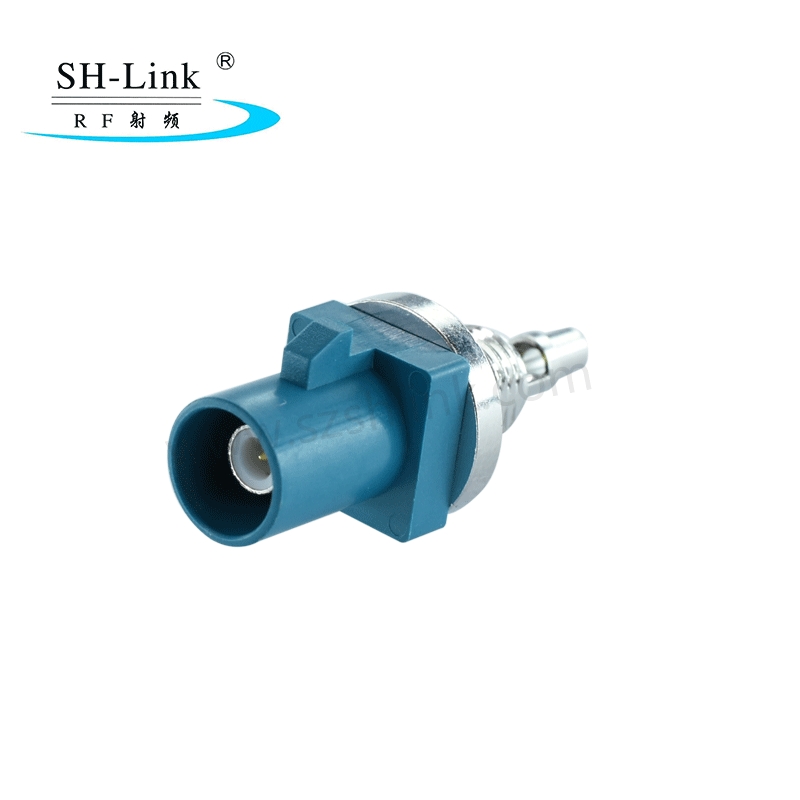

The product shown in the picture is type Z. We offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Inquiries are welcome.

SEND INQUIRY NOW

Product Name

FAKRA Screw Thread Male Connector

Place of Origin

Guangdong, China

Brand Name

SH-Link

Model Number

SHM.900.0006-25.Z

Application

Automotive

Certificate

ISO9001, IATF16949, ISO14001

Cable

1.13/1.37/1.32

SEND INQUIRY NOW

产品详情
公司简介

This is a simple and cheap way to change the appearance of the bedroom. It is available in a variety of colors to suit anyone's needs.

FAQ

1.Are you a trading company or factory?

A: We are a direct factory with 15 experienced engineers and more than 100 employees. Our company occupies 4000 square meters.

2.Do you accept customized orders?

A: Yes, we do. Personalized designs of RF products according to customer's requirements are welcomed.

3.How long can I get the sample?

A: Depends on your specific items, within 3-10days is required generally.

Advantages

1.We select raw material suppliers carrying the certificates that 100% guarantee the materials do no harm to the environment.

2.Small orders and sample orders are available.

3.We are a manufacturer, not a trader. We can send the goods to you directly. The price is competitive.

4.We provide CAD and 3D design sketches. We perform three phases of QC to ensure product quality.

About SH-Link

Shenzhen Sihanming Technology Co., Ltd was established in 2006,located in the 4th Industrial Park, Fenghuang Village, Bao'an District,Shenzhen City. Our company occupies 4000 square meters. There are more than 100 employees, 20% of them are engineers and technicians. We are professional in designing, developing, producing and sale of radio frequency coaxial connectors. With the advanced producing and inspection equipment, strong technology, perfect process flow. We have got certifications of ISO9001 and IATF16949. We produce more than 30 series and 2000 varieties "SH-Link" brand of antennas, FAKRA automotive connectors,all kinds of RF connectors, audio and video connector, big connector for feeder cable and cable assemblies. Some of them were used in national projects. Most of them have been sold all over the world. Commitment Quality policy: providing to customers with excellent quality and service of products on time, attach importance to the continuous improvement of technology and production efficiency. Environmental policy: Comply with environmental laws and regulations, improve the environmental consciousness, be committed to pollution prevention and resource conservation, continue to improve the environment. Operation principle. Innovation, the pursuit of excellence, creating brand, proft sharing. We produce all kinds of RF coaxial connector, cable assembly (pitail),antenna, audio and video connector, big connector for feeder cable and all kinds of adaptor,various RF coaxial connector designed for major projects.

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~6GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
