The FAKRA Male Connector with Spring without Threaded Z Type is widely used in automotive repair and diagnostics, production line testing, low-vibration environments, and R&D laboratories. The connector is compatible with RG178/RG174/1.13/1.37/RG316 cables.

The connector operates at DC-6GHz; impedance is 50 ohms; operating temperature: -40℃～＋85℃

Connector Materials: Shell: Brass ternary alloy; Insulator: PTFE; Outer shell: PA66+30%GF; Center pin: Gold-plated brass; Bezel: Stainless steel; Copper tube: Nickel-plated brass

This FAKRA connector is available in 14 models: A, B, C, D, E, F, G, H, I, K, Z, L, M, N. Each size corresponds to a different color, and different sizes are incompatible.

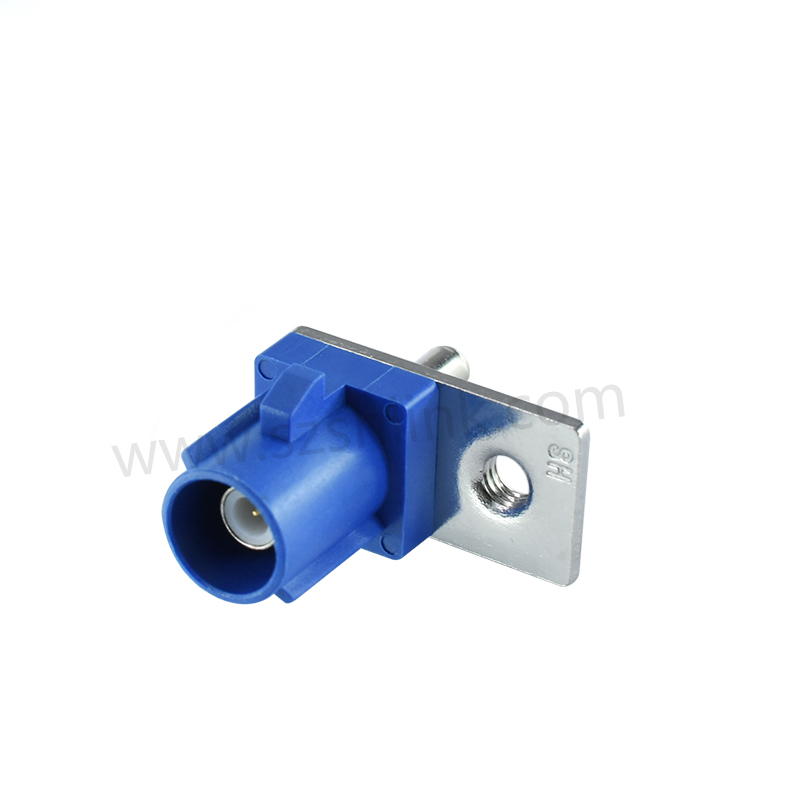

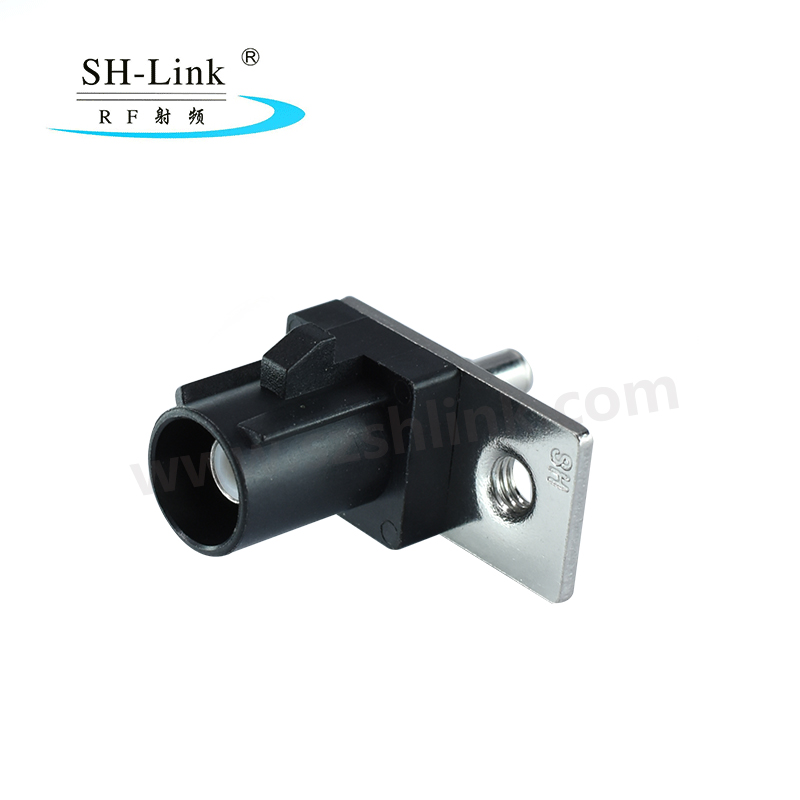

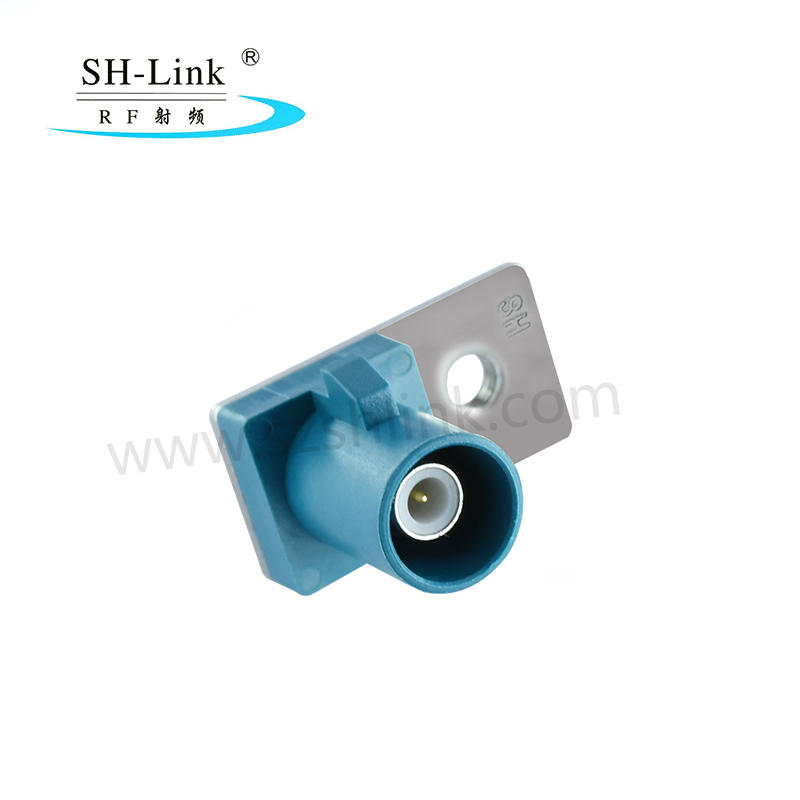

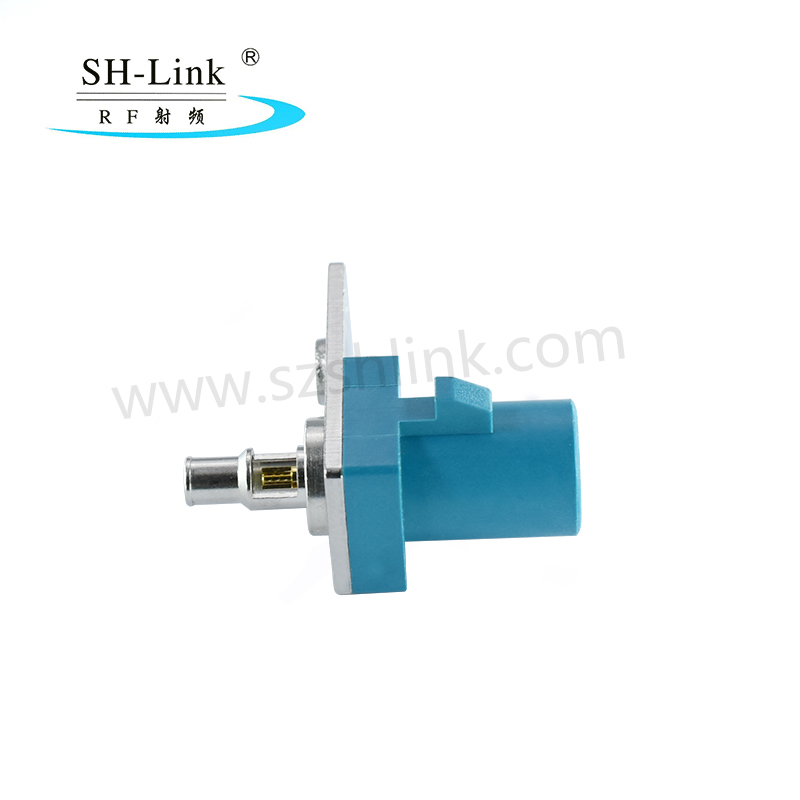

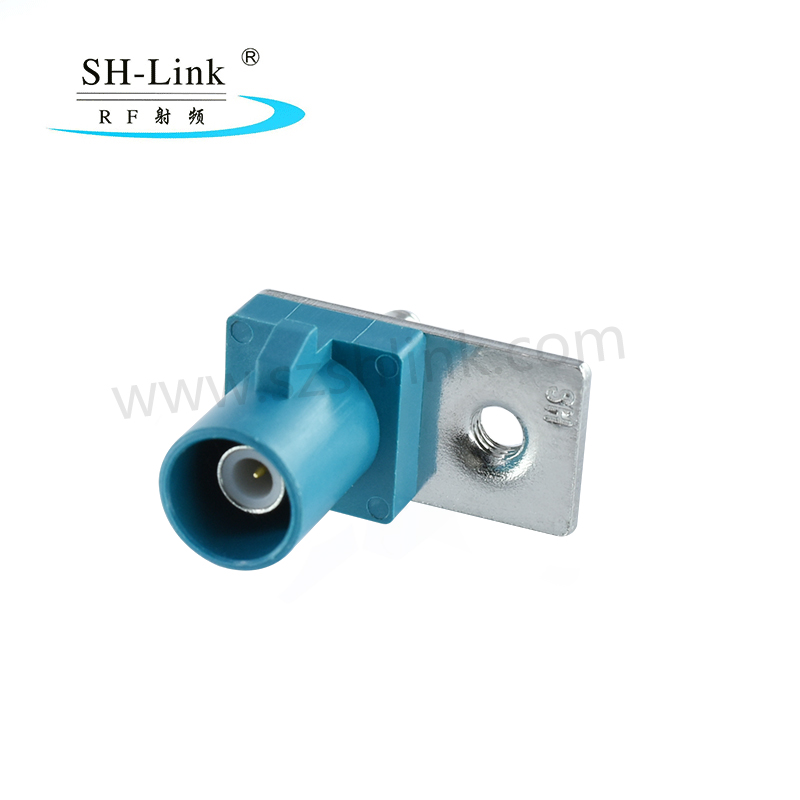

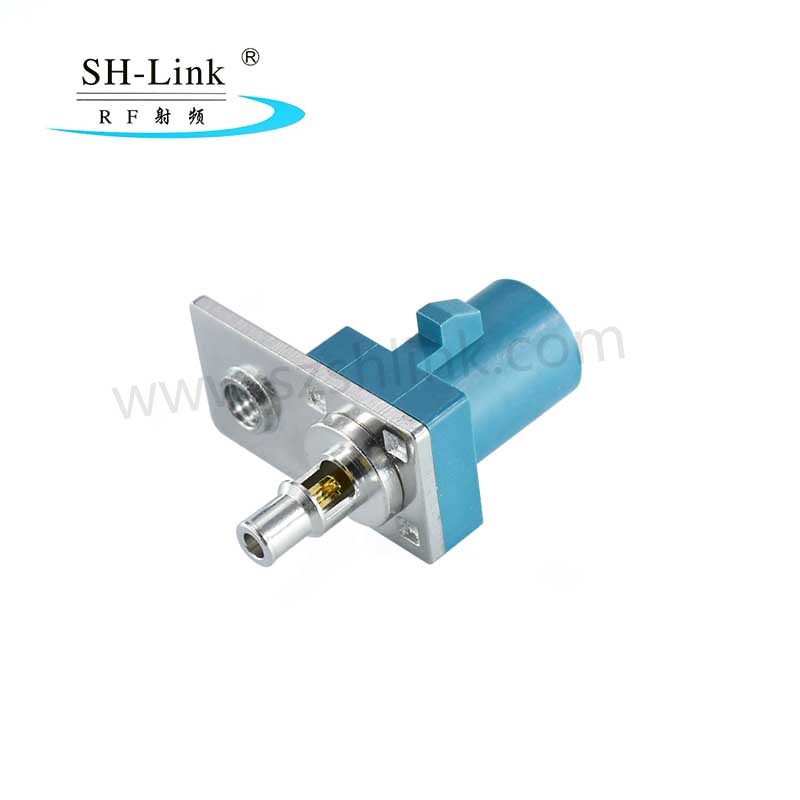

The product shown in the image is the Z type, which we offer high-quality, high-volume production. We also offer custom lengths and sizes at reasonable prices, ensuring safety and reliability. Please feel free to contact us.

SEND INQUIRY NOW

Product Name

FAKRA Male Connectors With Spring

Place of Origin

Guangdong,China

Brand Name

SH-Link

Model Number

SHM.900.0006-6.Z

Application

Automotive

Certificate

ISO9001,IATF16949,ISO14001

Cable

RG178

SEND INQUIRY NOW

产品详情
公司简介

Product Description

Major Characteristics:

Double-Locked,Fool-Proofing assembly with the color and the structure.

The connector is be protected by the cap.

Easy to assembly.

Many difference between the connector and the cap.

Specification Drawing

Different Models

Product Details

The Product Technical Characteristics:
Body	Brass,Ni-Plated
Socket	Beryllium-copper,Gold-Plated
Pin Contact	Brass
Insulator	PTFE
Crimp Ferrule	Brass,Ni-Plated
O-ring	Beryllium-Copper
Shell	PA66+30%GF

Technical Characteristics:
Impedance	50ohm
Frequency Range	0~6GHz
Withstanding Voltage	1000V(RMS)
Contact Resistance
Center Contact	≤ 20m
Outer contact	≤10m
Insulation	≥1,000MΩ
VSWR	DC - 2GHz<1.2

Mechanical characteristics:
Assembly	Locked
Durability	≥ 500 cycles
Temperature	-40 ~ +85°C
